CLUSTER SWITCH REMOVAL/INSTALLATION

id091700047500

1.  Remove the select lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION [A71M].)

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(2)  Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

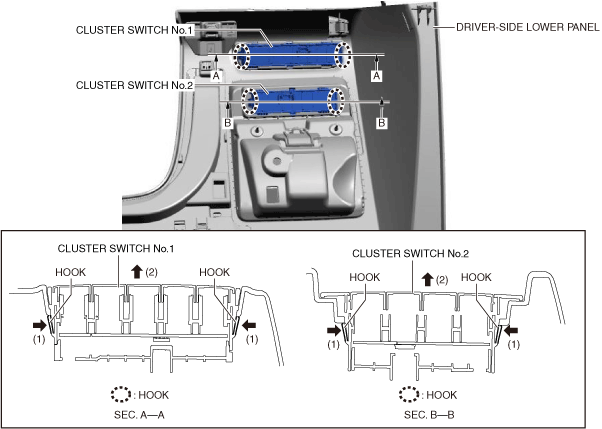

4.  With the hooks pressed in the direction of arrow (1) shown in the figure, push out cluster switch No.1 in the direction of arrow (2) and remove it from the driver-side lower panel.

a30zzw00000129

5.  With the hooks pressed in the direction of arrow (1) shown in the figure, push out cluster switch No.2 in the direction of arrow (2) and remove it from the driver-side lower panel.

6.  Install in the reverse order of removal.
