DOOR-ELECTRICAL SUPPLY UNIT

id094000701200


Purpose

•  The door-electrical supply unit performs control of such as the power door lock actuator and side turn light based on the input signal from the body control module (BCM).

Function

•  The control content of the door-electrical supply unit is as follows.

Control table

Control

Content

Reference
Power door lock system
The door-electrical supply unit operates the door lock actuators based on the signal from the body control module (BCM).
(See POWER DOOR AND CHARGE LID LOCK SYSTEM [(E)].)
(See KEYLESS ENTRY SYSTEM.)
(See ADVANCED KEYLESS ENTRY SYSTEM.)
Keyless entry system
Advanced keyless entry system
Power window system
The door-electrical supply unit operates the power window motors based on the signal from the power window switches.
(See POWER WINDOW SYSTEM.)
Power outer mirror system
The door-electrical supply unit operates the power outer mirror motors based on the signal from the power outer mirror switches.
(See POWER OUTER MIRROR SYSTEM.)
Heated outer mirror
The door-electrical supply unit operates the heated outer mirror based on the signal from the body control module (BCM).
(See REAR WINDOW DEFOGGER/HEATED OUTER MIRROR/WINDSHIELD WIPER DE-ICER.)
Side turn light
The door-electrical supply unit illuminates/turns off the side turn light based on the signal from the body control module (BCM).
(See SIDE TURN LIGHT.)
Blind spot monitoring (BSM) system
The door-electrical supply unit operates the blind spot monitoring (BSM) warning indicator light based on the signal from the body control module (BCM).
(See BLIND SPOT MONITORING (BSM) SYSTEM.)


Structure/Construction

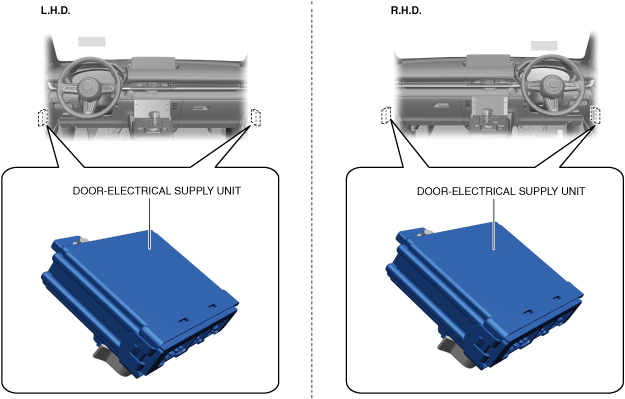

•  The door-electrical supply unit is located on the inside of the front door trim.
a30zzn00000730
