DTC P0C0B:00 [PCM (e-SKYACTIV)]

id300202031900

Outline

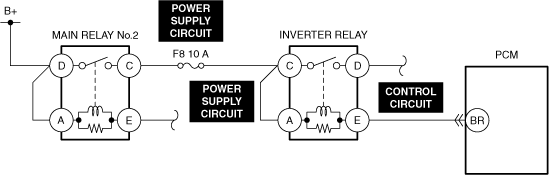

System malfunction location	Inverter relay: Control circuit malfunction
Detection condition	•  The PCM detects that the inverter relay is operating even though the PCM controls the inverter relay at off.
Fail-safe	•  Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [PCM (e-SKYACTIV)].)
Possible cause	•  Main relay No.2 malfunction •  Inverter relay malfunction •  PCM connector or terminals malfunction •  F8 10 A fuse malfunction •  Short to power supply in inverter relay power supply circuit •  Short to ground or open circuit in inverter relay power supply circuit •  Short to power supply in inverter relay control circuit •  Short to ground or open circuit in inverter relay control circuit •  PCM malfunction

Diagnostic Procedure

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION •  Record the snapshot data. Note •  Recording can be facilitated using the screen capture function of the PC.	—	Go to the next step.
2	INSPECT MAIN RELAY No.2 FOR MALFUNCTION •  Inspect the applicable part. (See RELAY INSPECTION.) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1. (See RELAY LOCATION [(E)].)
3	INSPECT INVERTER RELAY FOR MALFUNCTION •  Inspect the applicable part. (See RELAY INSPECTION.) •  Is the part normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1. (See RELAY LOCATION [(E)].)
4	INSPECT PCM CONNECTOR FOR MALFUNCTION •  Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) •  Are the connector and terminal normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
5	INSPECT F8 10 A FUSE •  Remove the F8 10 A fuse. •  Inspect the F8 10 A fuse. •  Is the fuse normal?	Yes	Reinstall the F8 10 A fuse, then go to the next step.
		No	Replace the F8 10 A fuse and perform the repair completion verification 1.
6	INSPECT INVERTER RELAY POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY •  Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
7	INSPECT INVERTER RELAY POWER SUPPLY CIRCUIT FOR SHORT TO GROUND •  Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
8	INSPECT INVERTER RELAY POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT •  Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
9	INSPECT INVERTER RELAY CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY •  Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
10	INSPECT INVERTER RELAY CONTROL CIRCUIT FOR SHORT TO GROUND •  Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
11	INSPECT INVERTER RELAY CONTROL CIRCUIT FOR OPEN CIRCUIT •  Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) •  Is the circuit normal?	Yes	Go to the next step.
		No	Repair or replace the malfunctioning location and perform the repair completion verification 1.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED •  Install/connect the part removed/disconnected during the troubleshooting procedure. •  Clear the DTC recorded in the memory. (See CLEARING DTC.) •  Replicate the vehicle conditions at the time the DTC was detected using the following procedure. Warning •  While performing this step, always operate the vehicle in a safe and lawful manner. •  When the M-MDS is used to observe monitor system status while driving, be sure to have another technician with you, or record the data in the M-MDS using the PID/DATA MONITOR AND RECORD capturing function and inspect later. ―  Drive the vehicle under the snapshot data condition. •  Perform the DTC inspection for the PCM. (See DTC INSPECTION.) •  Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].) If the CAN communication is normal, perform the diagnosis from Step 1. •  If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION.)
		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs DISPLAYED •  Perform the DTC inspection. (See DTC INSPECTION.) •  Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
		No	DTC troubleshooting completed.
