DTC U1032:00 [PCM (e-SKYACTIV)]


id300202041600


Outline

System malfunction location

Vehicle control module (VCM) error

Detection condition
•  When any of the following conditions is met:

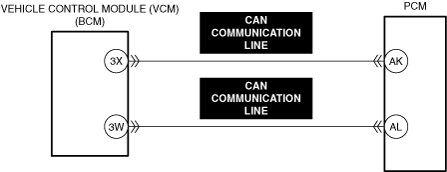

―  CAN communication line malfunction between vehicle control module (VCM) and PCM
―  Vehicle control module (VCM) internal malfunction (built-into body control module (BCM))
Fail-safe
•  Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [PCM (e-SKYACTIV)].)
Possible cause
•  CAN drive error (vehicle control module (VCM) or PCM)
•  CAN communication line malfunction between vehicle control module (VCM) and PCM
•  Body control module (BCM) connector or terminals malfunction
•  PCM connector or terminals malfunction
•  Vehicle control module (VCM) malfunction (built-into body control module (BCM))
•  PCM malfunction


Diagnostic Procedure

Step

Inspection

Results

Action

1
RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
•  Record the snapshot data.
Note
•  Recording can be facilitated using the screen capture function of the PC.
Go to the next step.
2
INSPECT FOR OTHER RELATED DTCs
•  Perform the DTC inspection for the PCM.
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
Go to the next step.
No
Go to the next step.
3
VERIFY VEHICLE CONTROL MODULE (VCM) DTC
•  Perform the DTC inspection for the vehicle control module (VCM).
•  Are any DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
No
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
4
INSPECT BODY CONTROL MODULE (BCM) CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification 1.
5
INSPECT PCM CONNECTOR FOR MALFUNCTION
•  Inspect the applicable connector and terminal.
•  Are the connector and terminal normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification 1.
6
INSPECT VEHICLE CONTROL MODULE (VCM) FOR MALFUNCTION
•  Inspect the applicable part.
•  Is the part normal?
Yes
Go to the next step.
No
Repair or replace the malfunctioning location and perform the repair completion verification 1.
Repair completion verification 1
VERIFY THAT VEHICLE IS REPAIRED
•  Install/connect the part removed/disconnected during the troubleshooting procedure.
•  Clear the DTC recorded in the memory.
•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.
Warning
•  While performing this step, always operate the vehicle in a safe and lawful manner.
•  When the M-MDS is used to observe monitor system status while driving, be sure to have another technician with you, or record the data in the M-MDS using the PID/DATA MONITOR AND RECORD capturing function and inspect later.
―  Drive the vehicle under the snapshot data condition.
•  Perform the DTC inspection for the PCM.
•  Is the same Pending DTC present?
Yes
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
•  If the malfunction recurs, replace the PCM, then go to the next step.
No
Go to the next step.
Repair completion verification 2
VERIFY IF OTHER DTCs DISPLAYED
•  Perform the DTC inspection.
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
