REAR SIDE TRIM REMOVAL/INSTALLATION

Except Power Retractable Hardtop

1. Remove the following parts:

(1) Console (See CONSOLE REMOVAL/INSTALLATION.)

(2) Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(3) Scuff plate (SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5) Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

(6) Seat back bar garnish (front) (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(7) Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

(8) Seat belt set plate (See SEAT BELT REMOVAL/INSTALLATION.)

(9) Seat back crossmember assembly (See SEAT BACK CROSSMEMBER ASSEMBLY REMOVAL/INSTALLATION.)

2. Remove the fasteners.

3. Pull the rear side trim outward and detach pins A, B and tab C.

4. Remove the rear side trim.

5. Install in the reverse order of removal.

Power Retractable Hardtop

1. Remove the following parts:

(1) Console (See CONSOLE REMOVAL/INSTALLATION.)

(2) Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(3) Scuff plate (SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5) Aeroboard (See AEROBOARD REMOVAL/INSTALLATION.)

(6) Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(7) Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

2. Disconnect the power retractable hardtop drain hose. (See POWER RETRACTABLE HARDTOP DRAIN HOSE REMOVAL/INSTALLATION.)

3. Remove the fasteners.

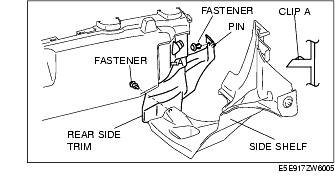

4. Remove the clip A and pin.

5. Remove the rear side trim.

6. Install the reverse order of removal.
