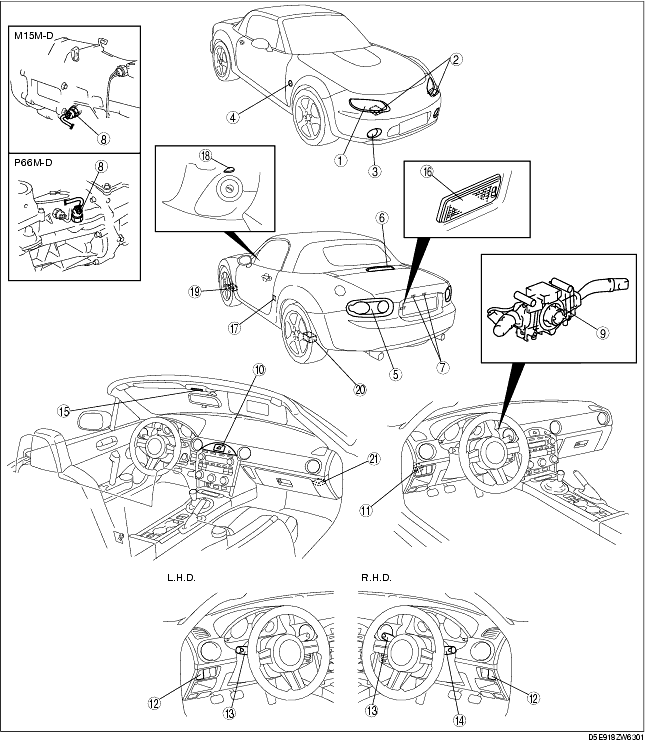

1
|
Front combination light
(See HEADLIGHT AIMING.)
|
|
2
|
Discharge headlight control module
|
|
3
|
Front fog light
(See FRONT FOG LIGHT AIMING.)
|
|
4
|
Front side turn light
|
|
5
|
Rear combination light
|
|
6
|
High-mount brake light
|
|
7
|
License plate light
|
|
8
|
Back-up light switch
|
|
9
|
Combination switch
|
|
10
|
Hazard warning switch
|
|
11
|
Flasher control module
|
|
12
|
Headlight leveling switch
|
|
13
|
Light switch (Left side of the column)
(See LIGHT SWITCH INSPECTION.)
|
|
14
|
Light switch (Right side of the column)
(See LIGHT SWITCH INSPECTION.)
|
|
15
|
Map light
(See MAP LIGHT INSPECTION.)
|
|
16
|
Trunk compartment light
|
|
17
|
Door switch
(See DOOR SWITCH INSPECTION.)
|
|
18
|
Ignition key illumination
|
|
19
|
Front auto leveling sensor
|
|
20
|
Rear auto leveling sensor
|
|
21
|
Auto leveling sensor control module
|
