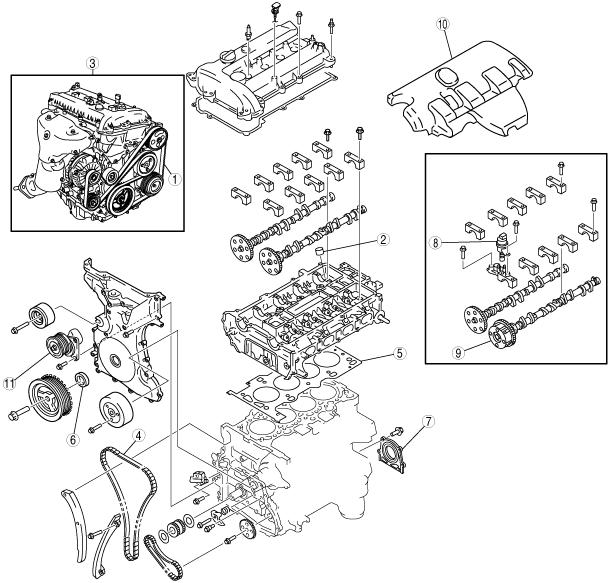

ENGINE LOCATION INDEX [L8, LF]

id0110a9802100

amxzzw00001451

1	Drive belt (See DRIVE BELT INSPECTION [L8, LF].) (See DRIVE BELT REPLACEMENT [L8, LF].)
2	Tappet (See VALVE CLEARANCE INSPECTION [L8, LF].) (See VALVE CLEARANCE ADJUSTMENT [L8, LF].)
3	Engine (See COMPRESSION INSPECTION [L8, LF].) (See ENGINE REMOVAL/INSTALLATION [L8, LF].)
4	Timing Chain (See TIMING CHAIN REMOVAL/INSTALLATION [L8, LF].)
5	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [L8, LF].)
6	Front oil seal (See FRONT OIL SEAL REPLACEMENT [L8, LF].)
7	Rear oil seal (See REAR OIL SEAL REPLACEMENT [L8, LF].)
8	OCV (With variable valve timing mechanism.) (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [L8, LF].) (See OIL CONTROL VALVE (OCV) INSPECTION [L8, LF].)
9	Variable valve timing actuator (With variable valve timing mechanism.) (See VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [LF].) (See VARIABLE VALVE TIMING ACTUATOR INSPECTION [LF].)
10	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF].)
11	Drive belt auto tensioner (See ENGINE DISASSEMBLY/ASSEMBLY [L8, LF].)
