CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

id091300999600

Top Tether Anchor

1.  Using the retractable hardtop switch, keep the front roof half-open. (retractable hardtop)

amxzzw00004123

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Open the convertible top. (convertible top)

4.  Remove the following parts:

(1)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MT)

(3)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(5)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(7)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(9)  Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(10)  Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(11)  Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION.)

(12)  Roof hook lever (See ROOF HOOK REMOVAL/INSTALLATION.)

(13)  Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

(14)  Seat back bar lower garnish (See SEAT BACK BAR LOWER GARNISH REMOVAL/INSTALLATION.)

5.  Remove the bolt.

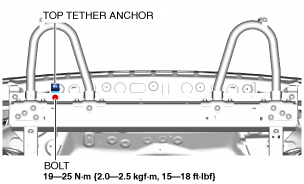

amxzzw00003502

6.  Remove the top tether anchor.

7.  Install in the reverse order of removal.

ISOFIX Anchor

Note

•  ISOFIX anchors are integrated with the passenger-side seat.

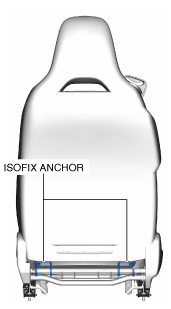

amxzzw00003503
