RETRACTABLE HARDTOP CONTROL MODULE REMOVAL/INSTALLATION

id091600104300

1.  Using the retractable hardtop switch, keep the front roof half-open.

amxzzw00004094

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MT)

(3)  Shift panel assembly (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(5)  Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(7)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(8)  Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION.)

(9)  Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(10)  Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

(11)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(12)  Back trim (See BACK TRIM REMOVAL/INSTALLATION.)

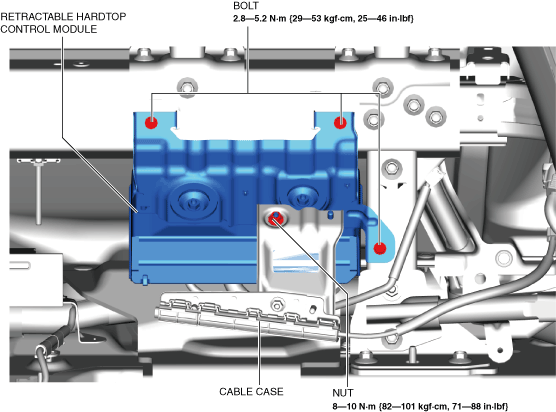

4.  Remove the nut.

amxzzw00004095

5.  Remove the cable case from the retractable hardtop control module and set it aside so that it does not interfere with the servicing.

6.  Remove the bolts.

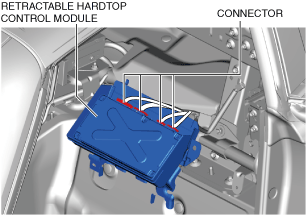

7.  Disconnect the connectors.

amxzzw00004096

8.  Remove the retractable hardtop control module.

9.  Install in the reverse order of removal.
