SHOCK ABSORBING PAD REMOVAL/INSTALLATION
id091700453300
4SD
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (2) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (5) Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (6) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (7) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (8) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION [4SD].)
- (9) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (10) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (11) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (12) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

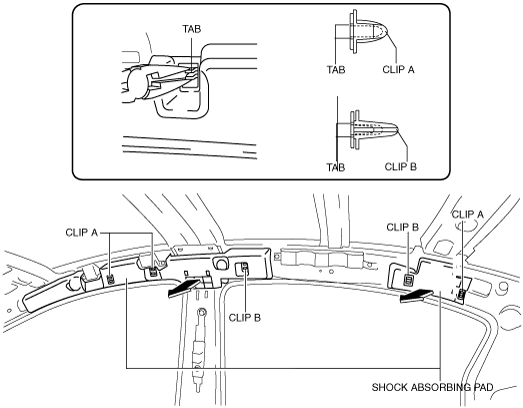

3. Pinch the tab using pincers, remove clips A and B, then remove the shock-absorbing pad in the direction of the arrow shown in the figure.
4. Install in the reverse order of removal.
5HB
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (2) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (5) Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (6) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (7) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (8) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].) (See REAR SEAT BACK REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)
- (9) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
- (10) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (11) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (12) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (13) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (14) Rain sensor cover (Vehicles with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)
- (15) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (16) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
3. Pinch the tab using pincers, remove clips A and B, then remove the shock-absorbing pad in the direction of the arrow shown in the figure.
4. Install in the reverse order of removal.
