REAR SEAT BELT REMOVAL/INSTALLATION

id081100800800

5HB

Center

•  (See REAR BUCKLE REMOVAL/INSTALLATION.) or (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

Side

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION [AutoAlliance (AAT) Thailand manufactured vehicles].) (See REAR SEAT BACK REMOVAL/INSTALLATION [Except AutoAlliance (AAT) Thailand manufactured vehicles].)

(4)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

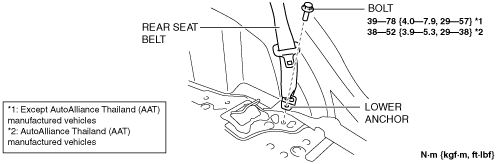

2.  Remove the rear seat belt lower anchor installation bolt.

am2zzw00004522

3.  Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

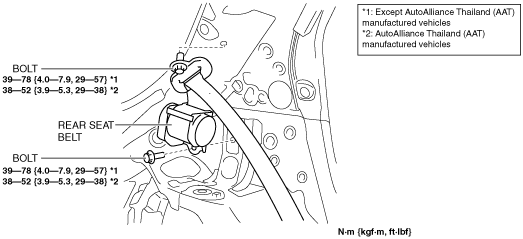

5.  Remove the bolts.

am2zzw00004523

6.  Remove the rear seat belt.

7.  Install in the reverse order of removal.

4SD

Center

•  (See REAR BUCKLE REMOVAL/INSTALLATION.) or (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

Side

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION [4SD].)

(4)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION [4SD].)

2.  Remove the rear seat belt lower anchor installation bolt.

am2zzw00005124

3.  Remove the bolts.

am2zzw00005125

4.  Remove the rear seat belt.

5.  Install in the reverse order of removal.
