EXTERIOR TRIM LOCATION INDEX

id091600800100

am2zzw00015339

1	Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION.)
2	Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
3	Side cowl grille (See SIDE COWL GRILLE REMOVAL/INSTALLATION.)
4	Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)
5	Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)
6	Roof molding (See ROOF MOLDING REMOVAL.) (See ROOF MOLDING INSTALLATION.)
7	Roof carrier bracket (with roof carrier bracket) (See ROOF CARRIER BRACKET REMOVAL/INSTALLATION.)
8	Front mudguard (See MUDGUARD REMOVAL/INSTALLATION.)
9	Front splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
10	Front deflector (See DEFLECTOR REMOVAL/INSTALLATION.)
11	Rear spoiler (4SD) (See REAR SPOILER REMOVAL.) (See REAR SPOILER INSTALLATION.)
12	Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)
13	Door sash film (See DOOR SASH FILM REMOVAL.) (See DOOR SASH FILM INSTALLATION.)
14	Rear side spoiler (5HB) (See REAR SIDE SPOILER REMOVAL/INSTALLATION.)
15	Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)
16	Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)
17	Rear deflector (with rear deflector) (See DEFLECTOR REMOVAL/INSTALLATION.)
18	Rear mudguard (5HB) (See MUDGUARD REMOVAL/INSTALLATION.)
19	Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
20	Extractor chamber (See EXTRACTOR CHAMBER REMOVAL/INSTALLATION.)
21	Ornament (See ORNAMENT INSTALLATION.)

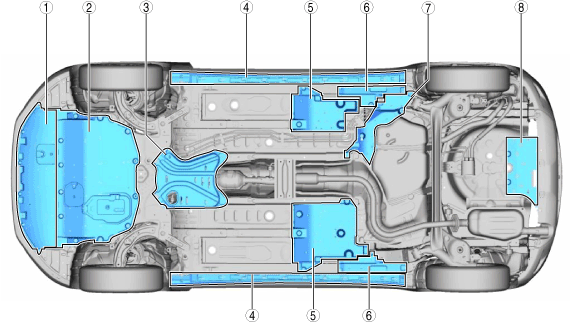

am2zzw00015340

1	Front under cover No.1 (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
2	Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
3	Plate (See PLATE REMOVAL/INSTALLATION.)
4	Stone guard (with stone guard) (See STONE GUARD REMOVAL/INSTALLATION.)
5	Floor under cover (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
6	Center splash shield (See CENTER SPLASH SHIELD REMOVAL/INSTALLATION.)
7	Fuel tank side cover (See FUEL TANK SIDE COVER REMOVAL/INSTALLATION.)
8	Trunk floor cover (See TRUNK FLOOR COVER REMOVAL/INSTALLATION.)
