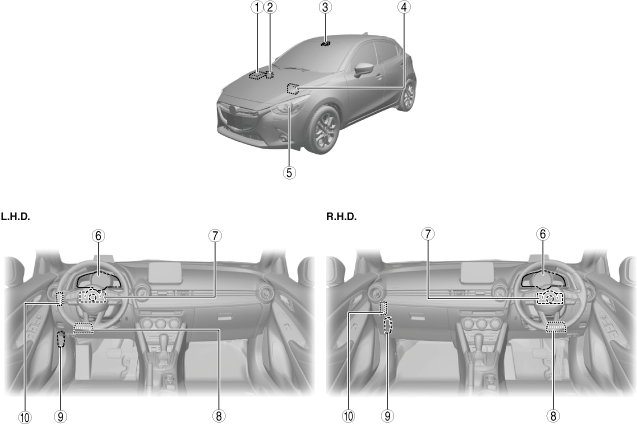

ADAPTIVE LED HEADLIGHTS SYSTEM LOCATION INDEX

id152000000600

am2zzw00014359

1	PCM (SKYACTIV-D 1.5) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].) (See PCM INSPECTION [SKYACTIV-D 1.5].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-D 1.5].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-D 1.5].)
2	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D.].) (See DSC HU/CM REMOVAL/INSTALLATION [R.H.D.].) (See DSC HU/CM INSPECTION.) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
3	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION).) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA).)
4	PCM (SKYACTIV-G 1.3, SKYACTIV-G 1.5) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See PCM INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
5	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.)
6	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
7	Start stop unit (See START STOP UNIT REMOVAL/INSTALLATION.) (See START STOP UNIT INSPECTION.) (See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).) (See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
8	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.) (See EPS CONTROL MODULE INSPECTION.)
9	Adaptive LED headlights control module (See ADAPTIVE LED HEADLIGHTS CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
10	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) INSPECTION.) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION.) (See BODY CONTROL MODULE (BCM) CONFIGURATION (USING READ/WRITE FUNCTION).) (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
