LIGHTING SYSTEMS LOCATION INDEX
id091800463300

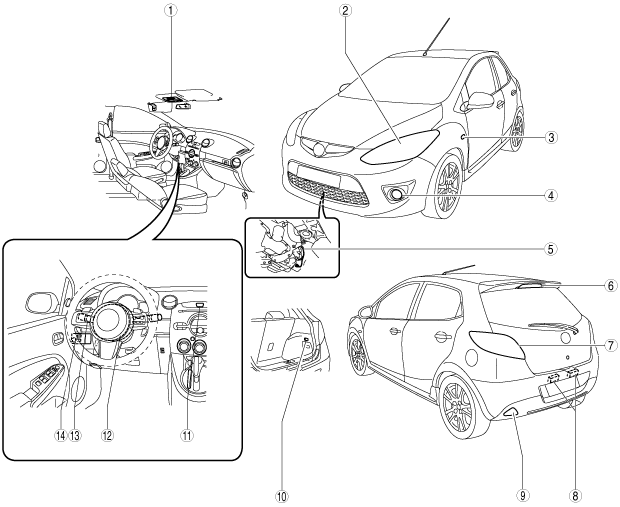

L.H.D.
am2zzw00003714
|
1
|
Interior light
(See INTERIOR LIGHT INSPECTION.)
|
2
|
Front combination lights
(See HEADLIGHT AIMING.)
|
3
|
Front side turn light
|
4
|
Front fog light
(See FRONT FOG LIGHT AIMING.)
|
5
|
Back-up light switch
|
6
|
High-mount brake light
|
7
|
Rear combination light
|
8
|
License plate light
|
9
|
Rear fog light
|
10
|
Cargo compartment light
|
11
|
Hazard warning switch
|
12
|
Combination switch
|
13
|
Light switch
(See LIGHT SWITCH INSPECTION.)
|
14
|
Headlight leveling switch
|

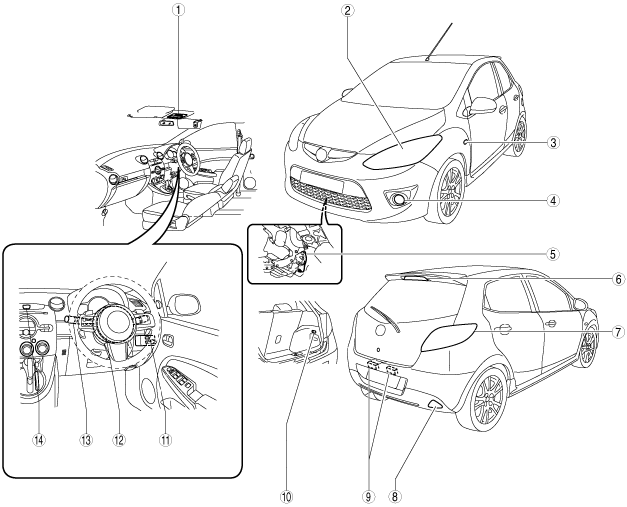

R.H.D.
am2zzw00003715
|
1
|
Interior light
(See INTERIOR LIGHT INSPECTION.)
|
2
|
Front combination lights
(See HEADLIGHT AIMING.)
|
3
|
Front side turn light
|
4
|
Front fog light
(See FRONT FOG LIGHT AIMING.)
|
5
|
Back-up light switch
|
6
|
High-mount brake light
|
7
|
Rear combination light
|
8
|
Rear fog light
|
9
|
License plate light
|
10
|
Cargo compartment light
|
11
|
Headlight leveling switch
|
12
|
Combination switch
|
13
|
Light switch
(See LIGHT SWITCH INSPECTION.)
|
14
|
Hazard warning switch
|
