LIGHTING SYSTEMS LOCATION INDEX (EXTERIOR)


id0918004633a8

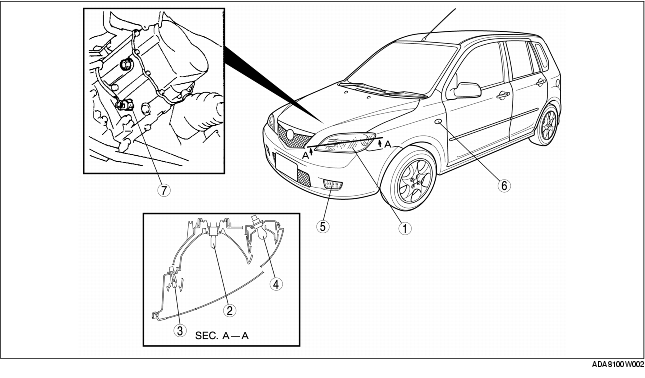

1
Front combination light
2
Headlight bulb
3
Parking light bulb
4
Front turn light
5
Front fog light
6
Front side turn light
7
Back-up light switch

1
Rear combination light
2
Inboard combination light
3
License plate light
4
High-mount brake light

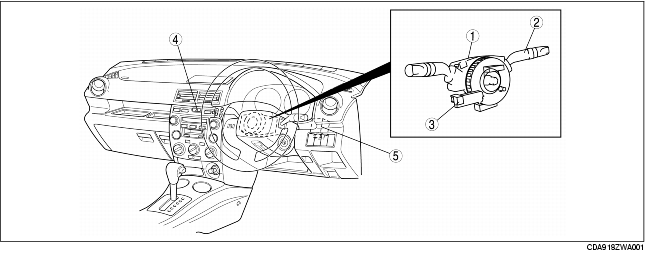

1
Combination switch
2
Light switch
3
Steering angle sensor
4
Hazard warning switch
5
Flasher control module
