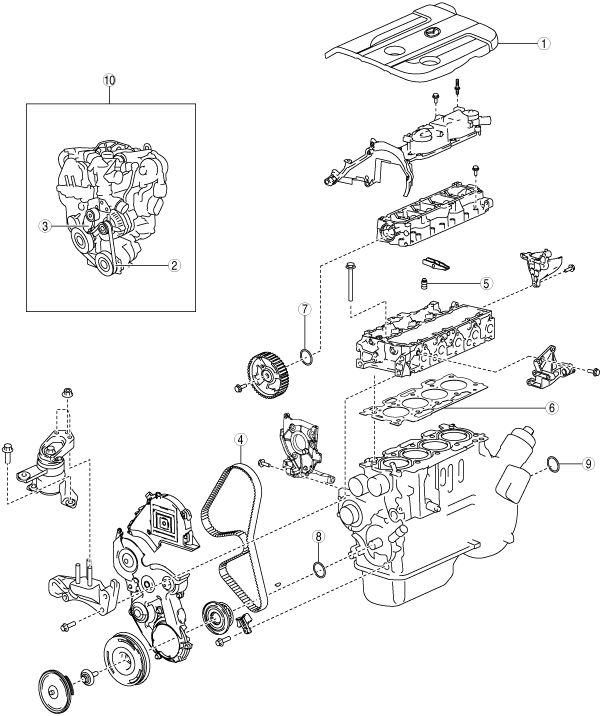

ENGINE LOCATION INDEX [MZ-CD 1.6]

id0110e3802100

am2zzw00006439

1	Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6].)
2	Drive belt (See DRIVE BELT INSPECTION [MZ-CD 1.6].) (See DRIVE BELT REMOVAL/INSTALLATION [MZ-CD 1.6].)
3	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [MZ-CD 1.6].)
4	Timing belt (See TIMING BELT REMOVAL/INSTALLATION [MZ-CD 1.6].)
5	Hydraulic lash adjuster (HLA) (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [MZ-CD 1.6].)
6	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [MZ-CD 1.6].)
7	Camshaft oil seal (See CAMSHAFT OIL SEAL REPLACEMENT [MZ-CD 1.6].)
8	Front oil seal (See FRONT OIL SEAL REPLACEMENT [MZ-CD 1.6].)
9	Rear oil seal (See REAR OIL SEAL REPLACEMENT [MZ-CD 1.6].)
10	Engine (See ENGINE TUNE-UP [MZ-CD 1.6].) (See ENGINE REMOVAL/INSTALLATION [MZ-CD 1.6].) (See ENGINE DISASSEMBLY/ASSEMBLY [MZ-CD 1.6].)
