ENGINE DISASSEMBLY/ASSEMBLY [MZ-CD 1.6]
id0110e3800500
1. Remove the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION [MZ-CD 1.6].)

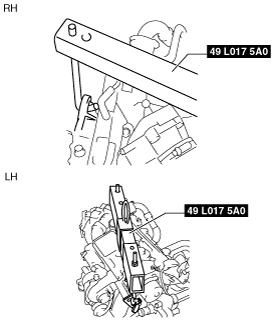

2. Set the SST as shown in the figure.
3. Hang the engine and transaxle using the SST, and then take it down from the engine jack.
4. Remove following parts:
- (1) Vacuum chamber
- (2) Starter (See STARTER REMOVAL/INSTALLATION [MZ-CD 1.6].)
- (3) Joint shaft (See JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6].)
- (4) Transaxle (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [B65M-R].)
- (5) Pressure plate and clutch disc (See CLUTCH UNIT REMOVAL/INSTALLATION [B65M-R].)
- (6) Turbocharger and exhaust manifold (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6].)
- (7) Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [MZ-CD 1.6].)
- (8) Oil pressure switch (See OIL PRESSURE INSPECTION [MZ-CD 1.6].)
- (9) Fuel hose
- (10) Water bypass hose
- (11) EGR cooler with bypass valve and EGR vale (See EGR VALVE REMOVAL/INSTALLATION [MZ-CD 1.6].)
- (12) Generator (See GENERATOR REMOVAL/INSTALLATION [MZ-CD 1.6].)

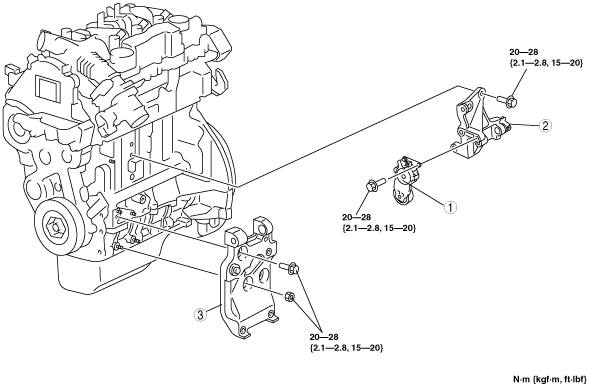

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
|
1
|
Drive belt auto tensioner
|
|
2
|
Generator bracket
|
|
3
|
A/C compressor bracket
|
