AUTOMATIC TRANSAXLE LOCATION INDEX [FN4A-EL]

id051701802000

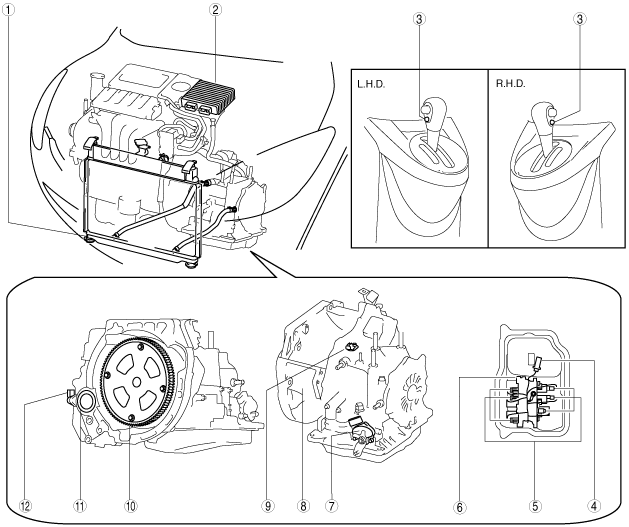

am2zzw00001180

1	Oil cooler (See OIL COOLER FLUSHING [FN4A-EL].) (See OIL COOLER REMOVAL/INSTALLATION [FN4A-EL].)
2	PCM (See PCM INSPECTION [FN4A-EL].) (See PCM REMOVAL/INSTALLATION [FN4A-EL].)
3	HOLD switch (See HOLD SWITCH INSPECTION [FN4A-EL].)
4	Transaxle fluid temperature (TFT) sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [FN4A-EL].) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [FN4A-EL].)
5	Solenoid valve (See SOLENOID VALVE INSPECTION [FN4A-EL].) (See SOLENOID VALVE REMOVAL/INSTALLATION [FN4A-EL].)
6	Control valve body (See CONTROL VALVE BODY REMOVAL [FN4A-EL].) (See CONTROL VALVE BODY INSTALLATION [FN4A-EL].)
7	Transaxle range (TR) switch (See TRANSAXLE RANGE (TR) SWITCH INSPECTION [FN4A-EL].) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [FN4A-EL].) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL [FN4A-EL].) (See TRANSAXLE RANGE (TR) SWITCH INSTALLATION [FN4A-EL].)
8	Automatic transaxle (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FN4A-EL].)
9	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION [FN4A-EL].) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [FN4A-EL].)
10	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [FN4A-EL].)
11	Oil seal (See OIL SEAL REPLACEMENT [FN4A-EL].)
12	Vehicle speed sensor (See VEHICLE SPEED SENSOR (VSS) INSPECTION [FN4A-EL].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [FN4A-EL].)
