HVAC BASIC SYSTEM LOCATION INDEX [MZR 1.3, MZR 1.5]

id0711008017j1

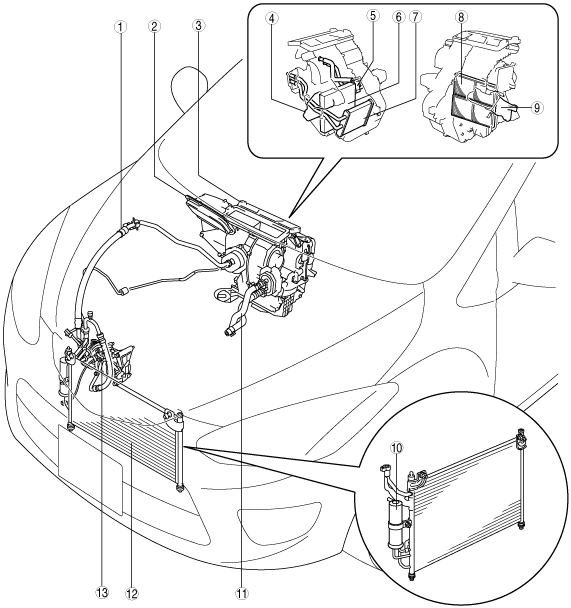

L.H.D.

am2zzw00000982

1	Refrigerant lines (See REFRIGERANT LINE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
2	Air intake duct (See AIR INTAKE DUCT REMOVAL/INSTALLATION.) (See AIR INTAKE DUCT DISASSEMBLY/ASSEMBLY.) (See AIR INTAKE LINK SET REMOVAL/INSTALLATION.)
3	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See AIRFLOW MODE LINK SET REMOVAL/INSTALLATION.) (See AIR MIX LINK SET REMOVAL/INSTALLATION.)
4	Heat duct (LH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
5	Expansion valve (See EXPANSION VALVE REMOVAL.) (See EXPANSION VALVE INSTALLATION.)
6	Evaporator (See EVAPORATOR INSPECTION.)
7	Heater core (See HEATER CORE INSPECTION.)
8	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
9	Heat duct (RH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
10	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
11	Heater hose (See HEATER HOSE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
12	Condenser (See CONDENSER REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See CONDENSER INSPECTION.)
13	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

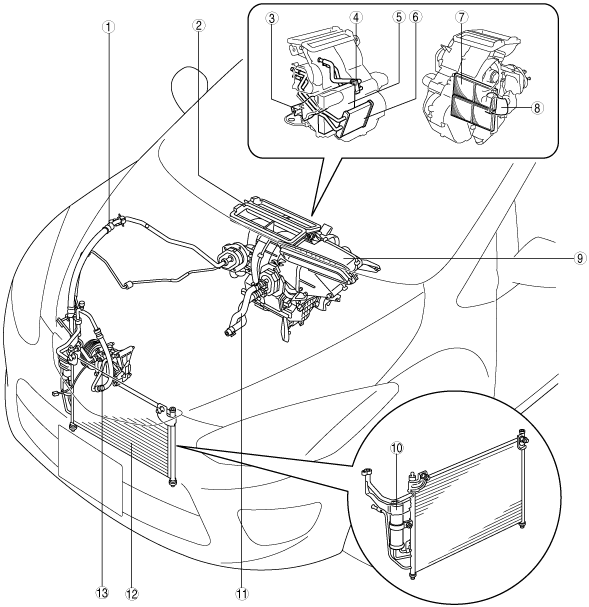

R.H.D.

adejjw00001399

1	Refrigerant lines (See REFRIGERANT LINE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
2	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See AIRFLOW MODE LINK SET REMOVAL/INSTALLATION.) (See AIR MIX LINK SET REMOVAL/INSTALLATION.)
3	Heat duct (LH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
4	Expansion valve (See EXPANSION VALVE REMOVAL.) (See EXPANSION VALVE INSTALLATION.)
5	Evaporator (See EVAPORATOR INSPECTION.)
6	Heater core (See HEATER CORE INSPECTION.)
7	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
8	Heat duct (RH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
9	Air intake duct (See AIR INTAKE DUCT REMOVAL/INSTALLATION.) (See AIR INTAKE DUCT DISASSEMBLY/ASSEMBLY.) (See AIR INTAKE LINK SET REMOVAL/INSTALLATION.)
10	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
11	Heater hose (See HEATER HOSE REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
12	Condenser (See CONDENSER REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See CONDENSER INSPECTION.)
13	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
