AIR MIX LINK SET REMOVAL/INSTALLATION
id071100816900
L.H.D.
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (3) Heat duct (RH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
- (4) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (5) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (6) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (7) Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
3. Remove the air mix actuator. (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
4. Disconnect the air mix wire. (manual air conditioner)
-
Caution
-
• Apply only the specified grease to links and cranks. Otherwise abnormal noise or improper operation may result.

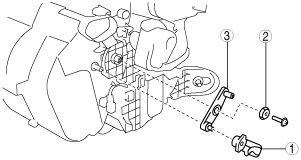

5. Remove in the order indicated in the table.
|
1
|
Air mix crank
|
|
2
|
Link collar (5) (manual air conditioner)
|
|
3
|
Air mix link (manual air conditioner)
|
6. Install in the reverse order of removal.
R.H.D.
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (2) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (3) Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (4) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (5) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (6) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (7) Driver’s side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (8) Steering shaft lower side L-shaped bracket (MTX) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (9) Heat duct (RH) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
- (10) Air mix actuator (full-auto air conditioner) (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
3. Disconnect the air mix wire. (manual air conditioner)
-
Caution
-
• Apply only the specified grease to links and cranks. Otherwise abnormal noise or improper operation may result.
4. Remove in the order indicated in the table.
|
1
|
Air mix crank
|
|
2
|
Link collar (5) (manual air conditioner)
|
|
3
|
Air mix link (manual air conditioner)
|
5. Install in the reverse order of removal.
