AIR INTAKE DUCT REMOVAL/INSTALLATION
id071100304100
1. Set the air intake mode to REC.
2. Disconnect the negative battery cable.
3. Remove the following parts:
- (1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (2) Glove compartment cover (R.H.D.) (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)
- (3) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (4) Heat duct (passenger-side) (See HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
- (5) Rear console (L.H.D.) (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (6) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (7) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (8) Front console component (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)
- (9) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (10) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (11) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (12) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (13) Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
- (14) Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (15) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
- (16) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
- (17) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
- (18) Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION.)
- (19) Passenger-side lower panel (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
- (20) Center panel unit (with audio) (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
- (21) Center panel (without audio) (See CENTER PANEL REMOVAL/INSTALLATION.)
- (22) Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
- (23) Shift lever (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)
- (24) Selector lever (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (25) Interlock unit (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (26) Passenger-side lower panel (R.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)
- (27) Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
- (28) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (29) Windshield wiper arm (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
- (30) Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
- (31) Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)
- (32) Windshield wiper motor (L.H.D.) (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.)
- (33) Steering shaft cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
- (34) Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
4. Disconnect the dashboard wiring harness connector.
5. Disconnect the antenna feeder No.1 jack.
6. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION [3HB].) (See DASHBOARD REMOVAL/INSTALLATION.)

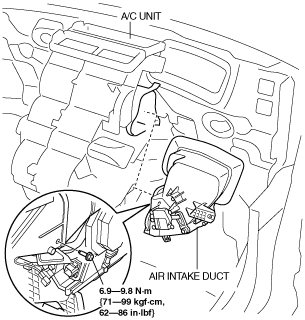

7. Remove the air intake duct installation bolt.
8. Remove the air intake duct.
9. Install in the reverse order of removal.
