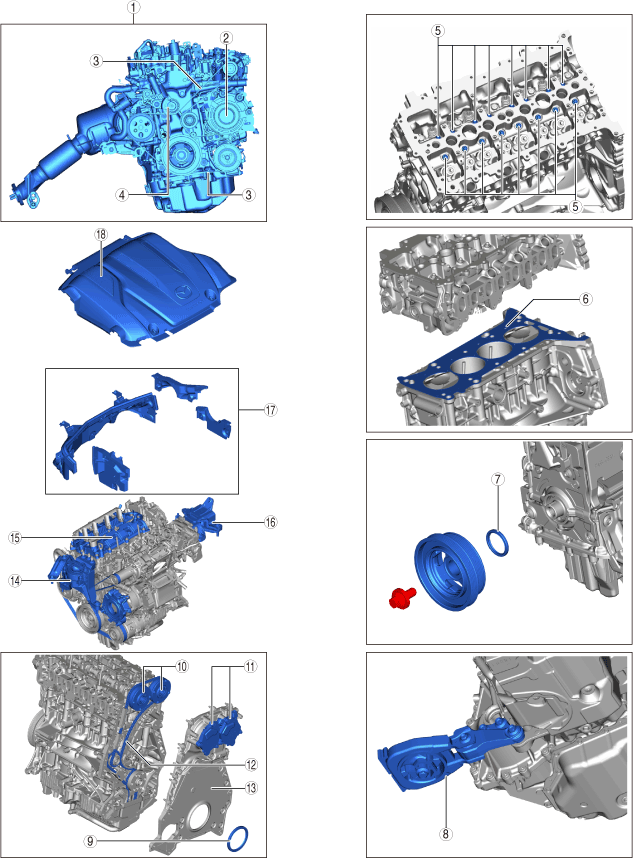

ENGINE LOCATION INDEX [SKYACTIV-X 2.0]

id0110hf800100

am3zzw00036182

1	Engine (See ENGINE TUNE-UP [SKYACTIV-X 2.0].) (See COMPRESSION INSPECTION [SKYACTIV-X 2.0].) (See ENGINE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See ENGINE DISASSEMBLY/ASSEMBLY [SKYACTIV-X 2.0].)
2	Decoupling ring tensioner (See DECOUPLING RING TENSIONER INSPECTION [SKYACTIV-X 2.0].) (See DECOUPLING RING TENSIONER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
3	Drive belt (See DRIVE BELT INSPECTION [SKYACTIV-X 2.0].) (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
4	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [SKYACTIV-X 2.0].) (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
5	HLA (See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION [SKYACTIV-X 2.0].) (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [SKYACTIV-X 2.0].)
7	Front oil seal (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-X 2.0].)
8	No.1 Engine Mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-X 2.0].)
9	Rear oil seal (See REAR OIL SEAL REPLACEMENT [SKYACTIV-X 2.0].)
10	Electric variable valve timing actuator (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [SKYACTIV-X 2.0].) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
11	Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
12	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
13	Engine rear cover (See ENGINE REAR COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
14	No.3 Engine Mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-X 2.0].)
15	Cylinder head cover (See CYLINDER HEAD COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
16	No.4 Engine Mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-X 2.0].)
17	Side wall (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
18	Plug hole plate (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].) (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
