ELECTRIC PARKING BRAKE [(E)]

id0412003001x2

Outline

Functions

Electric parking brake apply/release

•  Controls the apply/release of the electric parking brake based on the input signal from the electric parking brake switch.

Electric parking brake automatic release function

•  Releases the electric parking brake automatically when the vehicle starts from a standstill.

Emergency braking function

•  The function generates braking force by pulling up the electric parking brake switch while the vehicle is driven.

•  When the electric parking brake switch is pulled up while the vehicle is driven, the DSC HU/CM pressurizes the brake fluid to generate braking force. If a malfunction occurs in the DSC system and the brake fluid cannot be pressurized, the electric parking brake operates to generate braking force.

Electric parking brake automatic operation function

•  This function operates the electric parking brake automatically in conjunction with the ignition being switched OFF.

•  The automatic operation can be canceled by the driverÅfs operation. As a result, the ignition can be switched OFF without operating the electric parking brake when towing.

Electric parking brake automatic operation function (during AUTOHOLD operation)

•  The electric parking brake operates automatically based on the DSC HU/CM request during AUTOHOLD operation.

Note

•  The electric parking brake automatic release function is used to release the electric parking brake during AUTOHOLD operation.

Electric parking brake display function

•  The DSC HU/CM notifies the driver of the system conditions using an electric parking brake indicator light, electric parking brake chime, center display, and multi-information display.

Note

•  A warning message in the center display is displayed when the brake control system warning light/electric parking brake indicator light turns on or flashes. For the message content and verification method, refer to the [CENTER DISPLAY] in the workshop manual.

Maintenance mode

•  By switching to the maintenance mode when replacing the rear disc pads or rear disc plates, the electric parking brake motor gear unit motor will operate to allow the brake pistons to be pressed in. For details on the method for switching to the maintenance mode, refer to the [MAINTENANCE MODE] in the workshop manual.

Electric parking brake inspection mode

•  The electric parking brake inspection mode is a function that prevents the vehicle from suddenly flying off the brake tester by gradually strengthening the clamp power of the parking brake when the rear wheel speed is between 3 km/h {2 mph} and 12 km/h {7.5 mph} for a continuous 3 s or more while using a brake tester with rollers that have a fast rotation speed. When all the operation conditions are met, the normal mode switches to the electric parking brake inspection mode automatically. In addition, normal electric parking brake control is performed when using a brake tester with a rear wheel speed of less than 3 km/h {2 mph}. For details on the operation conditions and the control content, refer to the [SERVICE CAUTIONS] in the workshop manual.

Automatic configuration function

•  When the ignition is switched ON after the DSC HU/CM has been replaced, the DSC HU/CM reads the data from the instrument cluster via CAN communication and performs the configuration.

Construction

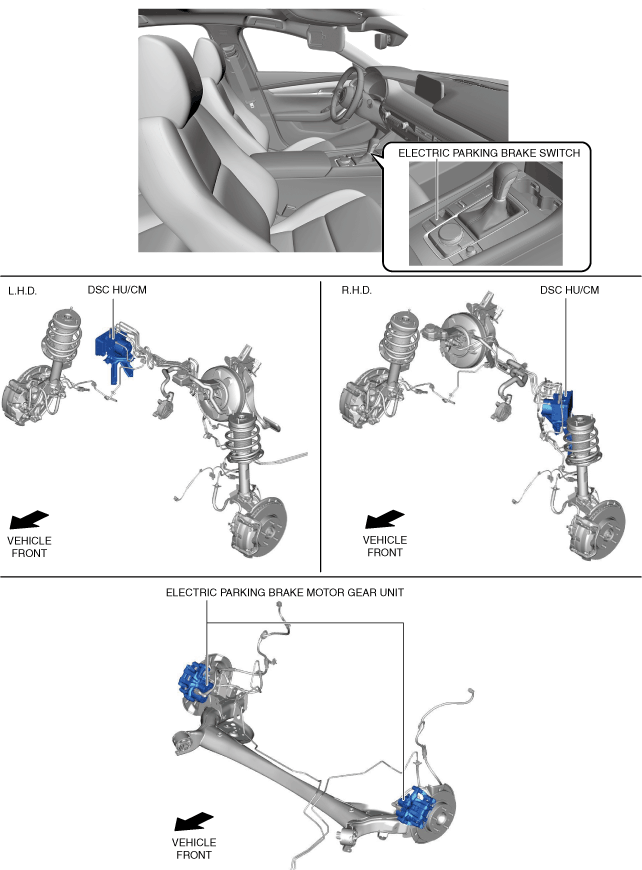

Structure

am3zzn00009101

am3zzn00010012

System wiring diagram

am3zzn00010101

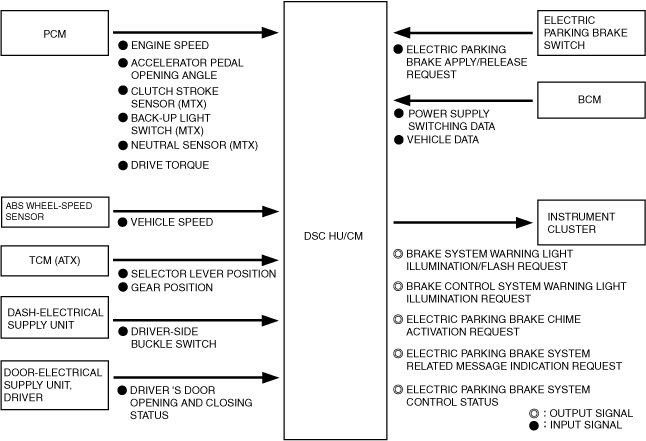

Block diagram

am3zzn00009798

Part name	Functions
DSC HU/CM	(See DSC HU/CM [(E)].)
Electric parking brake switch	(See ELECTRIC PARKING BRAKE SWITCH [(E)].)
Electric parking brake motor gear unit	(See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT [(E)].)
Electric parking brake indicator light	(See WARNING/INDICATION/ALARM [ELECTRIC PARKING BRAKE (E)].)
Brake control system warning light	(See WARNING/INDICATION/ALARM [ELECTRIC PARKING BRAKE (E)].)
Instrument cluster	(See INSTRUMENT CLUSTER [(E)].)
PCM	•  Transmits information such as the accelerator pedal depression amount and engine speed to the DSC HU/CM via CAN communication. •  Transmits shift lever position information to the DSC HU/CM via CAN communication. (MTX) •  Transmits clutch pedal depression amount information to the DSC HU/CM via CAN communication.
TCM (ATX)	(See TCM [CW6A-EL].) (See TCM [ET6A-EL, ET6AX-EL].)
BCM	(See BODY CONTROL MODULE (BCM).)
ABS wheel-speed sensor	(See ABS WHEEL-SPEED SENSOR AND ABS SENSOR ROTOR.) (See ABS WHEEL-SPEED SENSOR AND ABS SENSOR ROTOR.)(with Mazda M Hybrid)
Dash-electrical supply unit	(See DASH-ELECTRICAL SUPPLY UNIT [FULL-AUTO AIR CONDITIONER].) (See DASH-ELECTRICAL SUPPLY UNIT [MANUAL AIR CONDITIONER].)
Door-electrical supply unit	(See DOOR-ELECTRICAL SUPPLY UNIT.)

Operation

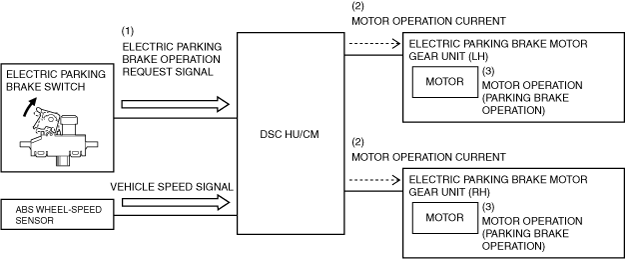

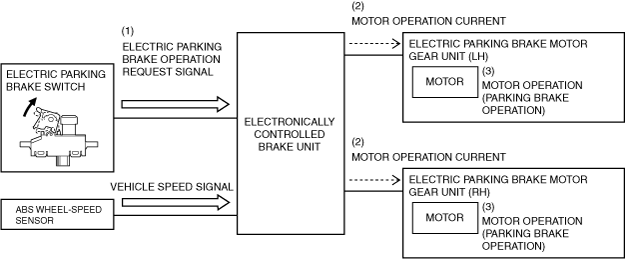

Electric parking brake operation

•  The electric parking brake operates when the following operation conditions are met.

Operation condition

―  Pull up the electric parking brake switch.

―  The vehicle is stopped.

1.  When the electric parking brake switch is pulled up, the DSC HU/CM detects an electric parking brake operation request signal (1).

2.  When the DSC HU/CM detects the electric parking brake operation request signal, it outputs motor operation current (2) to the electric parking brake motor gear unit.

3.  The motor operates (3) by the motor operation current. (The motor rotates towards the engagement side)

4.  The electric parking brake operates, and the operations stops when the motor reaches the target current.

am3zzn00008822

Note

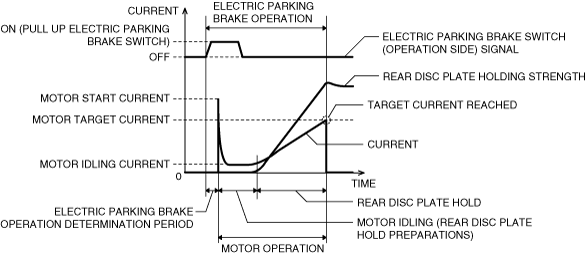

Electric parking brake motor gear unit control contents (when operating electric parking brake)

ac5wzn00003537

Electric parking brake release

•  The electric parking brake is released when the electric parking brake switch is pressed with the following operation conditions met.

Operation condition

―  Ignition switch ON (engine off or on)

―  Brake pedal is being operated, or accelerator pedal is being operated.

1.  When the electric parking brake switch is pressed, the DSC HU/CM detects an electric parking brake release request signal (1).

2.  The DSC HU/CM outputs the motor operation current (2) to the electric parking brake motor gear unit.

3.  The motor operates (3) by the motor operation current. (The motor rotates in the opposite direction of the engagement side)

4.  The electric parking brake is released and when the motor reaches the target stroke, the operation stops.

am3zzn00009104

Note

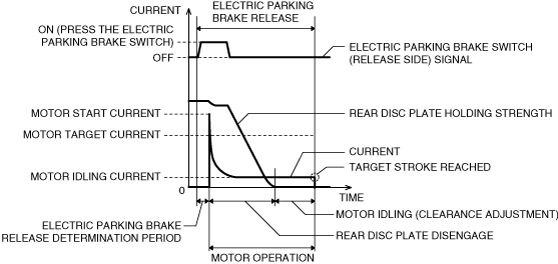

Electric parking brake motor gear unit control contents (when releasing electric parking brake)

am3zzn00008815

Electric parking brake automatic release function

Accelerator interlock release

•  The electric parking brake automatic release function operates when the accelerator pedal is depressed with all of the following conditions met.

Operation condition

―  Ignition is switched ON (engine on)

―  Driver's door closed

―  Driver seat belt fastened

―  Selector lever is in position other than N and P (ATX)

―  Shift lever is in position other than N (MTX)

―  Clutch pedal is depressed (MTX)

Shift interlock release (ATX vehicles and VIN *********** 400001 or later)

•  When the selector lever is shifted from the P position to a position other than the P position with all of the following conditions met, the electric parking brake is released automatically.

Operation condition

―  Shift interlock release is enabled

―  Ignition is switched ON (engine on)

―  Driver's door is closed

―  Brake pedal is depressed

―  Electric parking brake switch is not operated in operating direction

1.  The DSC HU/CM receives signals related to the operation from each control module. (1)

2.  The DSC HU/CM determines the operation conditions based on the received signals. (2)

3.  When all of the conditions are met, the electric parking brake automatic release function operates and motor operation current flows to the electric parking brake motor gear unit. (3)

4.  The motor operates by the motor operation current. (The motor rotates in the opposite direction of the clamping side)

5.  The electric parking brake is released (4) and when the motor reaches the target stroke, the operation stops.

am3zzn00009105

Shift interlock release function enabled/disabled switching

―  The shift interlock release function can be enabled or disabled by performing the following operations.

Operation conditions

•  Ignition is switched ON (engine off)

•  Electric parking brake is operating

Operation procedure

1.  Pull up the electric parking brake switch for 4 s or more.

2.  Release the switch once and perform Step 3 immediately.

3.  Pull up the electric parking brake switch again for 4 s or more.

4.  When switching is completed, the electric parking brake switch flashes and the notification sound is activated. (When enabled: 2 times, when disabled: 1 time)

Emergency braking function

Note

•  The emergency braking function operates only when the electric parking brake switch is continuously pulled up while the vehicle is being driven.

•  The emergency brake function operates when all of the following conditions are met.

Operation condition

―  Vehicle is being driven

―  Electric parking brake switch is continuously pulled up

No malfunction in DSC system

1.  When the DSC HU/CM detects an electric parking brake operation request signal (1) of the electric parking brake switch while the vehicle is being driven, The DSC HU/CM pressurizes the brake fluid.

2.  The brake fluid pressure is transmitted to the front brakes and rear brakes to generate braking force.

Malfunction in DSC system

1.  When the DSC HU/CM detects an electric parking brake operation request signal (1) of the electric parking brake switch while the vehicle is being driven, it sends motor operation current (2) to the electric parking brake motor gear unit.

2.  The motor operates (3) and generates braking force by the motor operation current. (The motor rotates towards the engagement side)

Note

•  For vehicle speeds of 5 km/h {3 mph} or more, independent anti-lock control on the left and right is performed so that the rear wheels do not lock-up.

•  When the vehicle speed is 3 km/h {2 mph} or less, the emergency braking function does not operate so that the system can determine if the vehicle is about to stop.

•  If the ABS control is detected while the emergency braking function is operating, control of the emergency braking function is canceled.

am3zzn00008824

Electric parking brake automatic operation function

•  The electric parking brake operates automatically when all of the following conditions are met.

Operation conditions

―  Vehicle is stopped (wheel speed is 3 km/h or less)

―  Ignition is switched from ON to OFF*¹

―  Operation to cancel automatic operation is not performed by driver

1.  The BCM sends (1) an engine switch signal to the DSC HU/CM. When the DSC HU/CM detects that the received engine switch signal has switched from ON to OFF, it outputs a motor operation current (2) to the electric parking brake motor gear unit.

2.  The motor operates (3) by the motor operation current. (The motor rotates towards the clamping side.)

3.  The electric parking brake operates, and the operation stops when the motor reaches the target current.

ac30zn00001516

Caution

•  When the electric parking brake automatic operation is canceled, shift the selector lever to the P position and set wheel blocks on the tires to prevent the vehicle from moving unexpectedly.

•  The electric parking brake automatic operation may not be able to be canceled when the vehicle is on a steep slope.

•  The electric parking brake automatic operation may be canceled by performing any of the following procedures.

Procedure 1

1.  Switch the ignition ON (engine off or on).

2.  Release the electric parking brake manually.

3.  Switch the AUTOHOLD off.

4.  Press the electric parking brake switch down continuously for 2 s or more.*¹

5.  Release the electric parking brake switch and switch the ignition OFF within 5 s since the electric parking brake warning sound was activated.*²

Procedure 2

1.  Switch the ignition ON (engine off or on).

2.  Release the electric parking brake manually.

3.  Switch the AUTOHOLD off.

4.  With the electric parking brake switch pressed down, switch the ignition OFF without depressing the brake pedal.*²

•  When the ignition is switched ON again, the electric parking brake automatic operation returns to normal control.

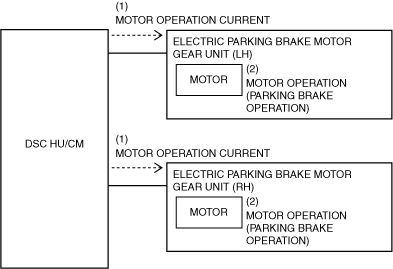

Electric parking brake automatic operation function (during AUTOHOLD operation)

•  The electric parking brake automatic operation function operates when all of the following conditions are met.

Operation condition

―  During AUTOHOLD operation (See AUTOHOLD [(E)].)

1.  When AUTOHOLD operates, the DSC HU/CM sends a motor operation current (1) to the EPB motor gear unit.

2.  The motor operates (2) by the motor operation current. (The motor rotates towards the engagement side)

3.  The electric parking brake operates, and the operations stops when the motor reaches the target current.

am3zzn00008044

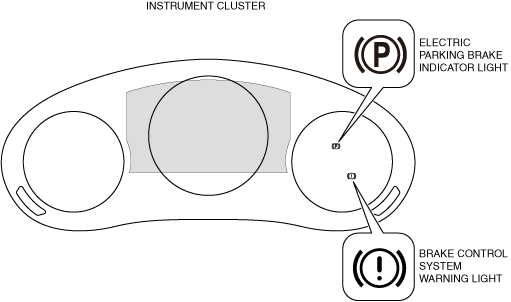

Electric parking brake display function

•  The instrument cluster displays as indicated in the table below when the vehicle is under the following conditions.

am3zzn00010012

Electric parking brake display table

Condition	Electric parking brake indicator light	Brake control system warning light	Multi-information display	Electric parking brake chime
The electric parking brake is operating while the vehicle is stopped.	On	Off	No display	Off
Electric parking brake is released.	Off	Off	No display	Off
The electric parking brake switch is pressed without depressing the brake pedal while the vehicle is stopped.	On	Off		Off
The electric parking brake automatic release function operates during acceleration.	Off	Off	No display	Off
The accelerator pedal is depressed when the electric parking brake is operating while the vehicle is stopped (door opened or driver seat belt unfastened)	On	Off		on*1
The electric parking brake is operated while the vehicle is driven.				On
The electric parking brake switch is operated (pulled/pressed) while the EPB system is malfunctioning.	Flash	On		Off
There is a malfunction in the parking brake force of the electric parking brake.
No malfunction in parking brake force, but malfunction occurring in electric parking brake system	Off*2 or on*3
The mode is switched to the maintenance mode.	Off		No display
The mode is switched to the electric parking brake inspection mode.	Off*2 or on*3
The electric parking brake cannot be operated because there is a malfunction in the electric parking brake system while the vehicle is stopped.	Off*2 or on*3	On		Off

With Mazda M Hybrid System

Outline

•  By operating the electric parking brake switch located on the upper panel, the electric parking brake is applied/released electronically.

•  Secure holding force with minimum operation of the electric parking brake switch has been realized by motorizing the parking brake.

•  With the addition of an electric parking brake automatic release function, forgetting to release the parking brake before driving is prevented by depressing the accelerator pedal.

•  Because the parking brake has been motorized, adjustment is unnecessary.

Functions

Electric parking brake apply/release

•  Controls the apply/release of the electric parking brake based on the input signal from the electric parking brake switch.

Electric parking brake automatic release function

•  Releases the electric parking brake automatically when the vehicle starts from a standstill.

Emergency braking function

•  The function generates braking force by pulling up the electric parking brake switch while the vehicle is driven.

•  When the electric parking brake switch is pulled up while the vehicle is driven, the electronically controlled brake unit pressurizes the brake fluid to generate braking force. If a malfunction occurs in the DSC system and the brake fluid cannot be pressurized, the electric parking brake operates to generate braking force.

Electric parking brake automatic operation function

•  This function operates the electric parking brake automatically in conjunction with the ignition being switched OFF.

•  The automatic operation can be canceled by the driverÅfs operation. As a result, the ignition can be switched OFF without operating the electric parking brake when towing.

Electric parking brake automatic operation function (during AUTOHOLD operation)

•  The electric parking brake operates automatically based on the electronically controlled brake unit request during AUTOHOLD operation.

Note

•  The electric parking brake automatic release function is used to release the electric parking brake during AUTOHOLD operation.

Electric parking brake display function

•  The electronically controlled brake unit notifies the driver of the system conditions using an electric parking brake indicator light, electric parking brake chime, center display, and multi-information display.

Note

•  A warning message in the center display is displayed when the brake control system warning light/electric parking brake indicator light turns on or flashes. For the message content and verification method, refer to the [CENTER DISPLAY] in the workshop manual.

Maintenance mode

•  By switching to the maintenance mode when replacing the rear disc pads or rear disc plates, the electric parking brake motor gear unit motor will operate to allow the brake pistons to be pressed in. For details on the method for switching to the maintenance mode, refer to the [MAINTENANCE MODE] in the workshop manual.

Electric parking brake inspection mode

•  The electric parking brake inspection mode is a function that prevents the vehicle from suddenly flying off the brake tester by gradually strengthening the clamp power of the parking brake when the rear wheel speed is between 3 km/h {2 mph} and 12 km/h {7.5 mph} for a continuous 3 s or more while using a brake tester with rollers that have a fast rotation speed. When all the operation conditions are met, the normal mode switches to the electric parking brake inspection mode automatically. In addition, normal electric parking brake control is performed when using a brake tester with a rear wheel speed of less than 3 km/h {2 mph}. For details on the operation conditions and the control content, refer to the [SERVICE CAUTIONS] in the workshop manual.

Automatic configuration function

•  When the ignition is switched ON after the electronically controlled brake unit has been replaced, the electronically controlled brake unit reads the data from the instrument cluster via CAN communication and performs the configuration.

Construction

Structure

am3zzn00009106

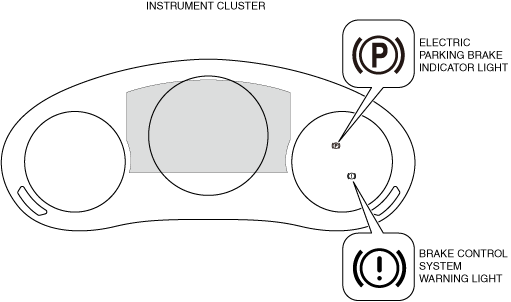

am3zzn00009102

System wiring diagram

am3zzn00010102

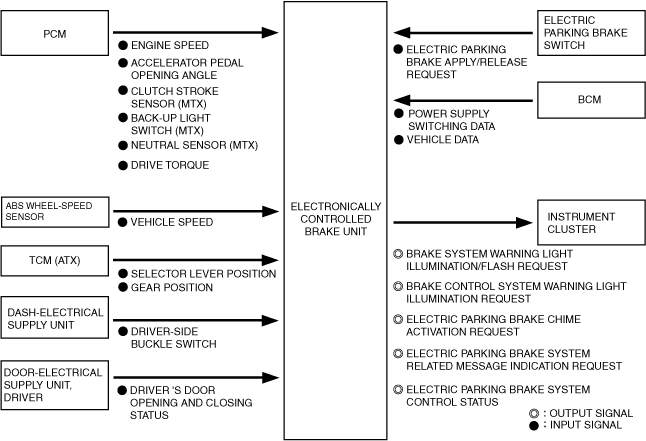

Block diagram

am3zzn00009858

•  The electric parking brake consists of the following parts.

Part name	Functions
Electronically controlled brake unit	(See ELECTRONICALLY CONTROLLED BRAKE UNIT.)
Electric parking brake switch	(See ELECTRIC PARKING BRAKE SWITCH [(E)].)
Electric parking brake motor gear unit	(See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT [(E)].)
Electric parking brake indicator light	(See WARNING/INDICATION/ALARM [ELECTRIC PARKING BRAKE (E)].)
Brake control system warning light	(See WARNING/INDICATION/ALARM [ELECTRIC PARKING BRAKE (E)].)
Instrument cluster	(See INSTRUMENT CLUSTER [(E)].)
PCM	•  Transmits information such as the accelerator pedal depression amount and engine speed to the electronically controlled brake unit via CAN communication. •  Transmits shift lever position information to the electronically controlled brake unit via CAN communication. (MTX) •  Transmits clutch pedal depression amount information to the electronically controlled brake unit via CAN communication.
TCM (ATX)	(See TCM [CW6A-EL].)
BCM	(See BODY CONTROL MODULE (BCM).)
ABS wheel-speed sensor	(See ABS WHEEL-SPEED SENSOR AND ABS SENSOR ROTOR.) (See ABS WHEEL-SPEED SENSOR AND ABS SENSOR ROTOR.)(with Mazda M Hybrid)
Dash-electrical supply unit	(See DASH-ELECTRICAL SUPPLY UNIT [FULL-AUTO AIR CONDITIONER].) (See DASH-ELECTRICAL SUPPLY UNIT [MANUAL AIR CONDITIONER].)
Door-electrical supply unit	(See DOOR-ELECTRICAL SUPPLY UNIT.)

Operation

Electric parking brake operation

•  The electric parking brake operates when the following operation conditions are met.

Operation condition

―  Pull up the electric parking brake switch.

―  The vehicle is stopped.

1.  When the electric parking brake switch is pulled up, the electronically controlled brake unit detects an electric parking brake operation request signal (1).

2.  When the electronically controlled brake unit detects the electric parking brake operation request signal, it outputs motor operation current (2) to the electric parking brake motor gear unit.

3.  The motor operates (3) by the motor operation current. (The motor rotates towards the engagement side)

4.  The electric parking brake operates, and the operations stops when the motor reaches the target current.

am3zzn00009109

Note

Electric parking brake motor gear unit control contents (when operating electric parking brake)

ac5wzn00003537

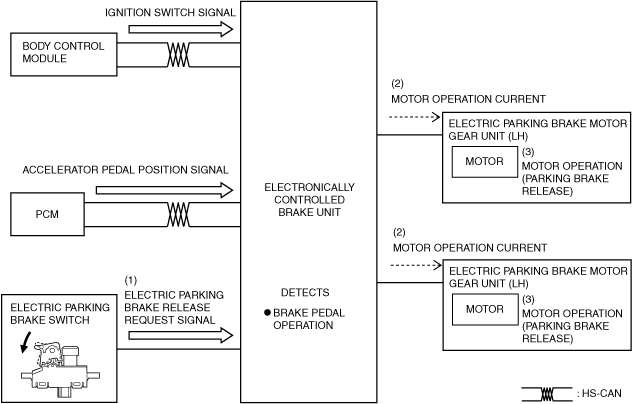

Electric parking brake release

•  The electric parking brake is released when the electric parking brake switch is pressed with the following operation conditions met.

Operation condition

―  Ignition switch ON (engine off or on)

―  Brake pedal is being operated, or accelerator pedal is being operated.

1.  When the electric parking brake switch is pressed, the electronically controlled brake unit detects an electric parking brake release request signal (1).

2.  The electronically controlled brake unit outputs the motor operation current (2) to the electric parking brake motor gear unit.

3.  The motor operates (3) by the motor operation current. (The motor rotates in the opposite direction of the engagement side)

4.  The electric parking brake is released and when the motor reaches the target stroke, the operation stops.

am3zzn00009474

Note

Electric parking brake motor gear unit control contents (when releasing electric parking brake)

am3zzn00008815

Electric parking brake automatic release function

Accelerator interlock release

•  The electric parking brake automatic release function operates when the accelerator pedal is depressed with all of the following conditions met.

Operation condition

―  Ignition is switched ON (engine on)

―  Driver's door closed

―  Driver seat belt fastened

―  Selector lever is in position other than N and P (ATX)

―  Shift lever is in position other than N (MTX)

―  Clutch pedal is depressed (MTX)

Shift interlock release (ATX vehicles and VIN *********** 400001 or later)

•  When the selector lever is shifted from the P position to a position other than the P position with all of the following conditions met, the electric parking brake is released automatically.

Operation condition

―  Shift interlock release is enabled

―  Ignition is switched ON (engine on)

―  Driver's door is closed

―  Brake pedal is depressed

―  Electric parking brake switch is not operated in operating direction

1.  The electronically controlled brake unit receives signals related to the operation from each control module. (1)

2.  The electronically controlled brake unit determines the operation conditions based on the received signals. (2)

3.  When all of the conditions are met, the electric parking brake automatic release function operates and motor operation current flows to the electric parking brake motor gear unit. (3)

4.  The motor operates by the motor operation current. (The motor rotates in the opposite direction of the clamping side)

5.  The electric parking brake is released (4) and when the motor reaches the target stroke, the operation stops.

am3zzn00009111

Shift interlock release function enabled/disabled switching

―  The shift interlock release function can be enabled or disabled by performing the following operations.

Operation conditions

•  Ignition is switched ON (engine off)

•  Electric parking brake is operating

Operation procedure

1.  Pull up the electric parking brake switch for 4 s or more.

2.  Release the switch once and perform Step 3 immediately.

3.  Pull up the electric parking brake switch again for 4 s or more.

4.  When switching is completed, the electric parking brake switch flashes and the notification sound is activated. (When enabled: 2 times, when disabled: 1 time)

Emergency braking function

Note

•  The emergency braking function operates only when the electric parking brake switch is continuously pulled up while the vehicle is being driven.

•  The emergency brake function operates when all of the following conditions are met.

Operation condition

―  Vehicle is being driven

―  Electric parking brake switch is continuously pulled up

No malfunction in DSC system

1.  When the electronically controlled brake unit detects an electric parking brake operation request signal (1) of the electric parking brake switch while the vehicle is being driven, The electronically controlled brake unit pressurizes the brake fluid.

2.  The brake fluid pressure is transmitted to the front brakes and rear brakes to generate braking force.

Malfunction in DSC system

1.  When the electronically controlled brake unit detects an electric parking brake operation request signal (1) of the electric parking brake switch while the vehicle is being driven, it sends motor operation current (2) to the electric parking brake motor gear unit.

2.  The motor operates (3) and generates braking force by the motor operation current. (The motor rotates towards the engagement side)

Note

•  For vehicle speeds of 5 km/h {3 mph} or more, independent anti-lock control on the left and right is performed so that the rear wheels do not lock-up.

•  When the vehicle speed is 3 km/h {2 mph} or less, the emergency braking function does not operate so that the system can determine if the vehicle is about to stop.

•  If the ABS control is detected while the emergency braking function is operating, control of the emergency braking function is canceled.

am3zzn00009112

Electric parking brake automatic operation function

•  The electric parking brake operates automatically when all of the following conditions are met.

Operation conditions

―  Vehicle is stopped (wheel speed is 3 km/h or less)

―  Ignition is switched from ON to OFF*¹

―  Operation to cancel automatic operation is not performed by driver

1.  The BCM sends (1) an engine switch signal to the electronically controlled brake unit. When the electronically controlled brake unit detects that the received engine switch signal has switched from ON to OFF, it outputs a motor operation current (2) to the electric parking brake motor gear unit.

2.  The motor operates (3) by the motor operation current. (The motor rotates towards the clamping side.)

3.  The electric parking brake operates, and the operation stops when the motor reaches the target current.

ac30zn00000985

Caution

•  When the electric parking brake automatic operation is canceled, shift the selector lever to the P position and set wheel blocks on the tires to prevent the vehicle from moving unexpectedly.

•  The electric parking brake automatic operation may not be able to be canceled when the vehicle is on a steep slope.

•  The electric parking brake automatic operation may be canceled by performing any of the following procedures.

Procedure 1

1.  Switch the ignition ON (engine off or on).

2.  Release the electric parking brake manually.

3.  Switch the AUTOHOLD off.

4.  Press the electric parking brake switch down continuously for 2 s or more.*¹

5.  Release the electric parking brake switch and switch the ignition OFF within 5 s since the electric parking brake warning sound was activated.*²

Procedure 2

1.  Switch the ignition ON (engine off or on).

2.  Release the electric parking brake manually.

3.  Switch the AUTOHOLD off.

4.  With the electric parking brake switch pressed down, switch the ignition OFF without depressing the brake pedal.*²

•  When the ignition is switched ON again, the electric parking brake automatic operation returns to normal control.

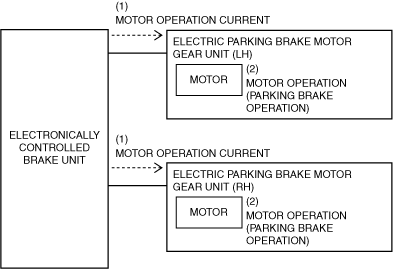

Electric parking brake automatic operation function (during AUTOHOLD operation)

•  The electric parking brake automatic operation function operates when all of the following conditions are met.

Operation condition

―  During AUTOHOLD operation (See AUTOHOLD.)

1.  When AUTOHOLD operates, the Electronically controlled brake unit sends a motor operation current (1) to the EPB motor gear unit.

2.  The motor operates (2) by the motor operation current. (The motor rotates towards the engagement side)

3.  The electric parking brake operates, and the operations stops when the motor reaches the target current.

am3zzn00009113

Electric parking brake display function

•  The instrument cluster displays as indicated in the table below when the vehicle is under the following conditions.

am3zzn00009262

Electric parking brake display table

Condition	Electric parking brake indicator light	Brake control system warning light	Multi-information display	Electric parking brake chime
The electric parking brake is operating while the vehicle is stopped.	On	Off	No display	Off
Electric parking brake is released.	Off	Off	No display	Off
The electric parking brake switch is pressed without depressing the brake pedal while the vehicle is stopped.	On	Off		Off
The electric parking brake automatic release function operates during acceleration.	Off	Off	No display	Off
The accelerator pedal is depressed when the electric parking brake is operating while the vehicle is stopped (door opened or driver seat belt unfastened)	On	Off		on*1
The electric parking brake is operated while the vehicle is driven.				On
The electric parking brake switch is operated (pulled/pressed) while the EPB system is malfunctioning.	Flash	On		Off
There is a malfunction in the parking brake force of the electric parking brake.
No malfunction in parking brake force, but malfunction occurring in electric parking brake system	Off*2 or on*3
The mode is switched to the maintenance mode.	Off		No display
The mode is switched to the electric parking brake inspection mode.	Off*2 or on*3
The electric parking brake cannot be operated because there is a malfunction in the electric parking brake system while the vehicle is stopped.	Off*2 or on*3	On		Off
