INSTRUMENT CLUSTER [(E)]

id0922000185x2

Outline

―  Warning light/Indicator light

―  Speedometer

―  Tachometer

―  Fuel gauge

―  Odometer/tripmeter

―  Panel light

―  Trip computer system

―  Multi-information display

―  Engine coolant temperature gauge

―  Ambient temperature display

Functions

―  Vehicle speed (speedometer display function)

―  Engine speed (tachometer display function)

―  Remaining fuel quantity (fuel gauge display function)

―  Traveled distance (odometer/tripmeter display function)

―  Instantaneous fuel economy, average fuel economy, remaining distance to empty, direction of vehicle travel (trip computer calculation function)

―  Warning/indicator light (warning/indicator light turn on/flash function)

―  Warning/indicator message (multi-information display)

Speedometer display function

•  The instrument cluster controls the speedometer based on the vehicle speed signal sent via CAN communication from the PCM, and displays the current vehicle speed. For details on the speedometer, refer to [SPEEDOMETER]. (See SPEEDOMETER.)

Tachometer display function

•  The instrument cluster controls the tachometer based on the engine speed signal sent via CAN communication from the PCM, and displays the current engine speed. For details on the tachometer, refer to [TACHOMETER]. (See TACHOMETER.)

Fuel gauge display function

•  The instrument cluster displays the remaining fuel quantity based on the fuel gauge sender unit voltage signal sent via CAN communication from the ESU, and the vehicle speed and fuel injection amount signals sent via CAN communication from the PCM. For details on the remaining fuel quantity, refer to [FUEL GAUGE]. (See FUEL GAUGE.)

Odometer/tripmeter display function

•  The instrument cluster displays the total traveled distance/traveled distance over a specific interval based on the travel distance signal sent via CAN communication from the PCM. For details on the odometer/tripmeter, refer to [ODOMETER/TRIPMETER]. (See ODOMETER/TRIPMETER.)

Trip computer calculation function

•  The instrument cluster calculates the instantaneous fuel economy, average fuel economy, and remaining travel distance to empty, and displays the calculated result and the direction of travel on the multi-information display in the instrument cluster. For details on the trip computer, refer to [TRIP COMPUTER INFORMATION SYSTEM]. (See TRIP COMPUTER INFORMATION SYSTEM [(E)].)

Warning/indicator light turn on/flash function, message/system operation status display function

•  The instrument cluster turns on or flashes the warning indicator lights to notify the driver of the vehicle system status.

•  The types of warning/indicator lights are as follows: For details on each warning/indicator light, refer to each reference.

•  A warning message in the center display is displayed when the warning/indicator light is turned on or flashed. For the display content, refer to the [CENTER DISPLAY] in the workshop manual.

Except Chinese specs.

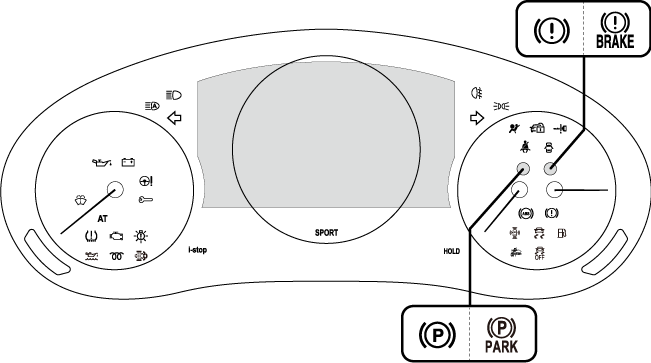

am3zzn00009619

Warning light/Indicator light	Name	Message is displayed in multi-information display when warning/indicator light turns on/flashes	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)	Reference
	Brake system warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	ABS warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	Charging system warning light	×	×	—	×	(See CHARGING SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See CHARGING SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See CHARGING SYSTEM [SKYACTIV-X 2.0].)
	Engine oil warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Power steering malfunction indicator light	×	×	—	×	(See POWER STEERING MALFUNCTION INDICATOR LIGHT/POWER STEERING MALFUNCTION INDICATION.)
	Brake control system warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	Check engine light	×	×	—	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Automatic transaxle warning light	×	×	ATX	×	(See WARNING/INDICATION/ALARM [ET6A-EL, ET6AX-EL].)
	Air bag/seat belt pre-tensioner system warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See WARNING/INDICATION/ALARM [STANDARD DEPLOYMENT CONTROL SYSTEM].)
	Tire pressure monitoring system warning light	×	×	—	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
	KEY warning light (red)/KEY indicator light (green)	×	×	—	×	(See WARNING/INDICATION/ALARM [SECURITY AND LOCKS].)
	HBC indicator light (green)/HBC warning light (amber)	×	×	With high beam control (HBC) system	×	(See WARNING/INDICATION/ALARM [(E)].)
	i-ACTIVSENSE warning light	×	×	With i-ACTIVSENSE	×	(See WARNING/INDICATION/ALARM [(E)].)
	Exterior light warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
	Low fuel warning light	×	×	—	—	(See WARNING/INDICATION/ALARM [INSTRUMENT CLUSTER].)
	Engine oil level warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Seat belt warning light	×	×	—	—	(See WARNING/INDICATION/ALARM [INSTRUMENT CLUSTER].)
	Low washer fluid level warning light	×	×	With washer fluid-level sensor	—	(See WARNING/INDICATION/ALARM [WIPER/WASHER SYSTEM].)
	Door-ajar warning light	—	—	—	—	(See WARNING/INDICATION/ALARM [INSTRUMENT CLUSTER].)
	Security indicator light	—	—	—	—	(See WARNING/INDICATION/ALARM [SECURITY AND LOCKS].)
	Wrench indicator light	×	×	—	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Lights-on indicator light	—	—	—	—	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
	Headlight high-beam indicator light	—	—	—	—	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
	Turn signal/hazard warning indicator lights	—	—	—	—	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
	Electric parking brake indicator light	×	×	—	×	(See WARNING/INDICATION/ALARM [ELECTRIC PARKING BRAKE (E)].)
	AUTOHOLD active indicator light	—	—	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	Mazda radar cruise control with stop & go function (MRCC with stop & GO function) indicator light	—	—	With mazda radar cruise control with stop & go function (MRCC with stop & go function)	—	(See WARNING/INDICATION/ALARM [(E)].)
	Cruising & traffic support (CTS) indicator Light	—	—	With Cruising & Traffic Support (CTS)	—	(See WARNING/INDICATION/ALARM [(E)].)
	TCS/DSC indicator light	×	×	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	DSC OFF indicator light	—	—	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	Select mode indicator light	—	—	With drive selection system	—	(See DRIVE SELECTION SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See DRIVE SELECTION SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See DRIVE SELECTION SYSTEM [SKYACTIV-X 2.0].)
	Smart brake support (SBS) OFF indicator light	—	—	With smart brake support (SBS)	×	(See WARNING/INDICATION/ALARM [(E)].)
	Rear fog light indicator light	—	—	With rear fog light	—	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
	i-stop warning light (amber)/i-stop indicator light (green)	—	×	With i-stop system	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [CONTROL SYSTEM (SKYACTIV-D 1.8)].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Glow indicator light	—	—	SKYACTIV-D 1.8	—	(See WARNING/INDICATION/ALARM [CONTROL SYSTEM (SKYACTIV-D 1.8)].)
	Diesel particulate filter indicator light	—	—	SKYACTIV-D 1.8	—	(See WARNING/INDICATION/ALARM [CONTROL SYSTEM (SKYACTIV-D 1.8)].)

Chinese specs.

am3zzn00010026

Warning light/Indicator light	Name	Message is displayed in multi-information display when warning/indicator light turns on/flashes	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)	Reference
	Brake system warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	ABS warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	Charging system warning light	×	×	—	×	(See CHARGING SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See CHARGING SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See CHARGING SYSTEM [SKYACTIV-X 2.0].)
	Engine oil warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Power steering malfunction indicator light	×	×	—	×	(See POWER STEERING MALFUNCTION INDICATOR LIGHT/POWER STEERING MALFUNCTION INDICATION.)
	Brake control system warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	Check engine light	×	×	—	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Automatic transaxle warning light	×	×	ATX	×	(See WARNING/INDICATION/ALARM [ET6A-EL, ET6AX-EL].)
	Air bag/seat belt pre-tensioner system warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See WARNING/INDICATION/ALARM [STANDARD DEPLOYMENT CONTROL SYSTEM].)
	Tire pressure monitoring system warning light	×	×	—	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
	KEY warning light (red)/KEY indicator light (green)	×	×	—	×	(See WARNING/INDICATION/ALARM [SECURITY AND LOCKS].)
	HBC indicator light (green)/HBC warning light (amber)	×	×	With high beam control (HBC) system	×	(See WARNING/INDICATION/ALARM [(E)].)
	i-ACTIVSENSE warning light	×	×	With i-ACTIVSENSE	×	(See WARNING/INDICATION/ALARM [(E)].)
	Exterior light warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
	Low fuel warning light	×	×	—	—	(See WARNING/INDICATION/ALARM [INSTRUMENT CLUSTER].)
	Check fuel cap warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Engine oil level warning light	×	×	—	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [CONTROL SYSTEM (SKYACTIV-D 1.8)].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Seat belt warning light	×	×	—	—	(See WARNING/INDICATION/ALARM [INSTRUMENT CLUSTER].)
	Low washer fluid level warning light	×	×	With washer fluid-level sensor	—	(See WARNING/INDICATION/ALARM [WIPER/WASHER SYSTEM].)
	Door-ajar warning light	—	—	—	—	(See WARNING/INDICATION/ALARM [INSTRUMENT CLUSTER].)
	Security indicator light	—	—	—	—	(See WARNING/INDICATION/ALARM [SECURITY AND LOCKS].)
	Wrench indicator light	×	×	—	×	(See WARNING/INDICATION/ALARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See WARNING/INDICATION/ALARM [CONTROL SYSTEM (SKYACTIV-D 1.8)].) (See WARNING/INDICATION/ALARM [SKYACTIV-X 2.0].)
	Lights-on indicator light	—	—	—	—	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
	Headlight high-beam indicator light	—	—	—	—	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
	Turn signal/hazard warning indicator lights	—	—	—	—	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
	Electric parking brake indicator light	×	×	—	×
	AUTOHOLD active indicator light	—	—	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	Mazda radar cruise control with stop & go function (MRCC with stop & GO function) indicator light	—	—	With mazda radar cruise control with stop & go function (MRCC with stop & go function)	—	(See WARNING/INDICATION/ALARM [(E)].)
	Cruising & traffic support (CTS) indicator Light	—	—	With Cruising & Traffic Support (CTS)	—	(See WARNING/INDICATION/ALARM [(E)].)
	TCS/DSC indicator light	×	×	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	DSC OFF indicator light	—	—	—	×	(See WARNING/INDICATION/ALARM [DYNAMIC STABILITY CONTROL (DSC) (E)].)
	Select mode indicator light	—	—	With drive selection system	—	(See DRIVE SELECTION SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See DRIVE SELECTION SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See DRIVE SELECTION SYSTEM [SKYACTIV-X 2.0].)
	Smart brake support (SBS) OFF indicator light	—	—	With smart brake support (SBS)	×	(See WARNING/INDICATION/ALARM [(E)].)
	i-stop warning light (amber)/i-stop indicator light (green)	—	×	With i-stop system	×	(See WARNING/INDICATION/ALARM [(E)].)
	Rear fog light indicator light	—	—	With rear fog light	—	(See WARNING/INDICATION/ALARM [(E)].)

Panel Light Control Function

•  The instrument cluster changes the brightness of the panel light based on the panel light control switch rotation signal and TNS (parking lights) signal sent via CAN communication from the body control module (BCM). For details on the panel light, refer to [PANEL LIGHT]. (See PANEL LIGHT.)

Structure/Construction

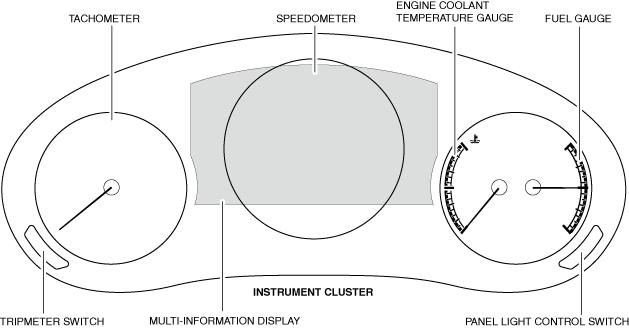

Structural view

am3zzn00006829

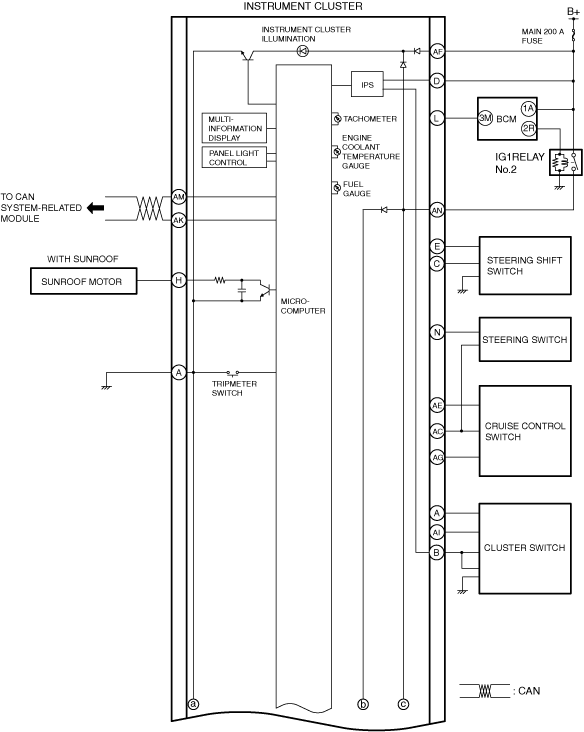

System wiring diagram

am3zzn00008378

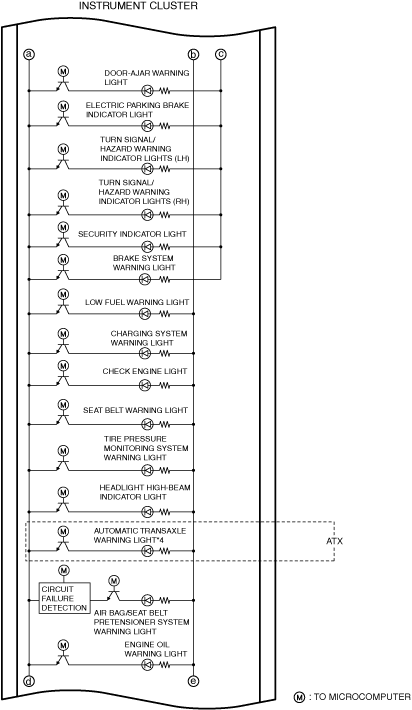

am3zzn00008379

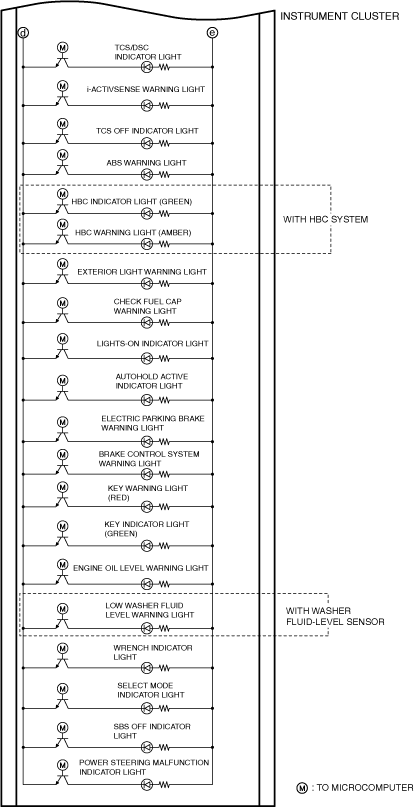

am3zzn00008380
