BUMPER SLIDER REMOVAL/INSTALLATION

id091000822500

Front Bumper Slider

Front bumper slider No.1

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Upper face (See UPPER FACE REMOVAL/INSTALLATION [(E)].)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

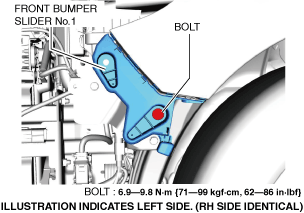

3.  Remove the bolt shown in the figure.

am3uuw00015025

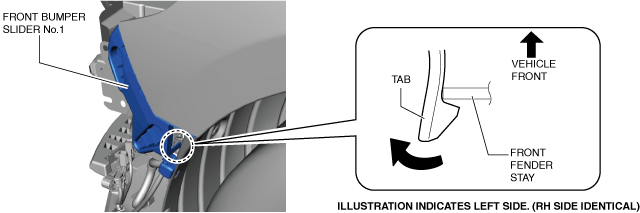

4.  Move the front bumper slider No.1 tab in the direction of the arrow shown in the figure and detach it from the front fender stay.

am3zzw00023254

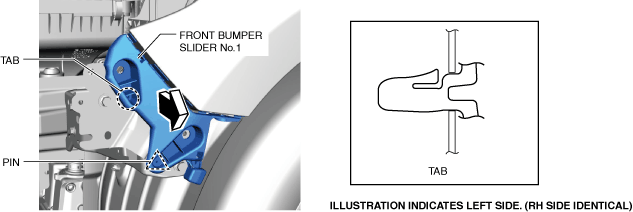

5.  Pull front bumper slider No.1 in the direction of the arrow shown in the figure while detaching the tab and pin.

am3zzw00023255

6.  Install in the reverse order of removal.

7.  Adjust the headlight aiming. (See HEADLIGHT AIMING [(E)].)

8.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

9.  Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

10.  Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)

Front bumper slider No.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Upper face (See UPPER FACE REMOVAL/INSTALLATION [(E)].)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the screw.

am3zzw00023256

4.  Move front bumper slider No.2 in the direction of the arrow shown in the figure and remove it while detaching tabs A and B.

am3uuw00015029

5.  Install in the reverse order of removal.

6.  Adjust the headlight aiming. (See HEADLIGHT AIMING [(E)].)

7.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

8.  Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING.)

9.  Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)

Rear Bumper Slider

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(6)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(7)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

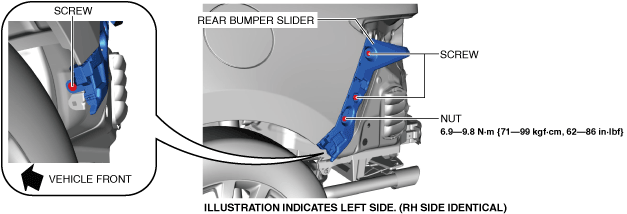

3.  Remove the screws and nut shown in the figure.

4SD

am3zzw00031785

5HB

am3zzw00031786

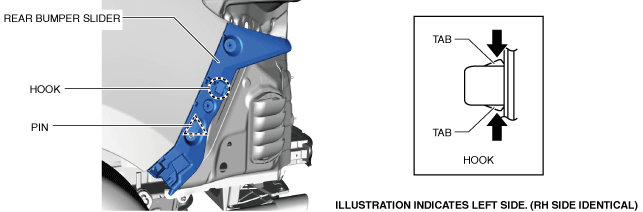

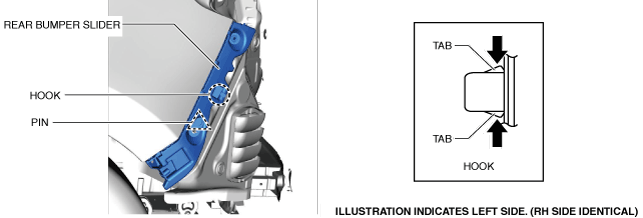

4.  Press the hook tabs shown in the figure and remove the rear bumper slider from the rear fender panel.

Caution

•  When removing, move the rear bumper slider straight out from the rear fender panel so as not to damage the rear bumper slider pin.

4SD

am3zzw00023259

5HB

am3zzw00023260

5.  Install in the reverse order of removal.

6.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

7.  Perform the rear side radar sensor aiming adjustment. (with rear side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING.)
