DVD/CD PLAYER REMOVAL/INSTALLATION

id092000032100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(2)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(6)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(7)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

(8)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(9)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(10)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(12)  Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION [(E)].)

(13)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

(14)  Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(15)  Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

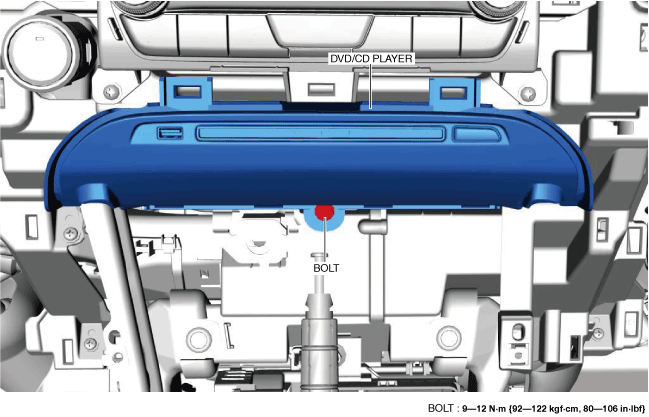

3.  Remove the bolt.

am3zzw00031825

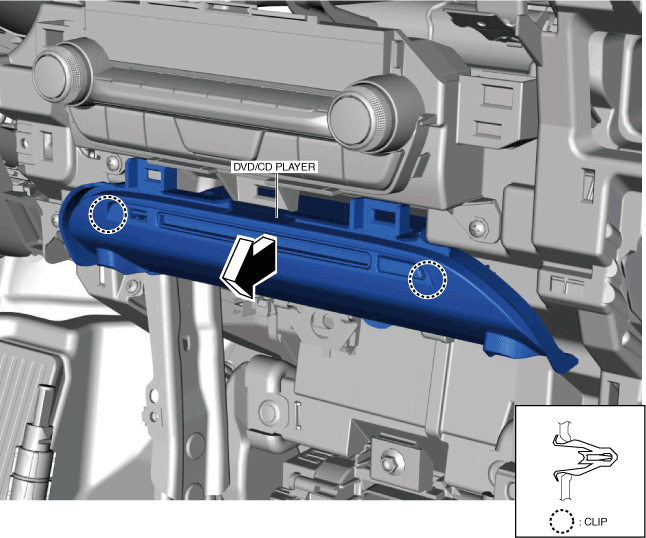

4.  Move the DVD/CD player in the direction of the arrow shown in the figure and remove it while detaching the clips.

am3zzw00031826

5.  Rotate the DVD/CD player in the direction of the arrow shown in the figure and remove the DVD/CD player bracket from the gap between the dashboard panel and dashboard panel bracket.

am3zzw00031827

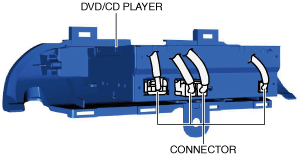

6.  Disconnect the connectors.

am3zzw00031828

7.  Install in the reverse order of removal.
