ENGINE LOCATION INDEX [L3 Turbo]

id0110b3800100

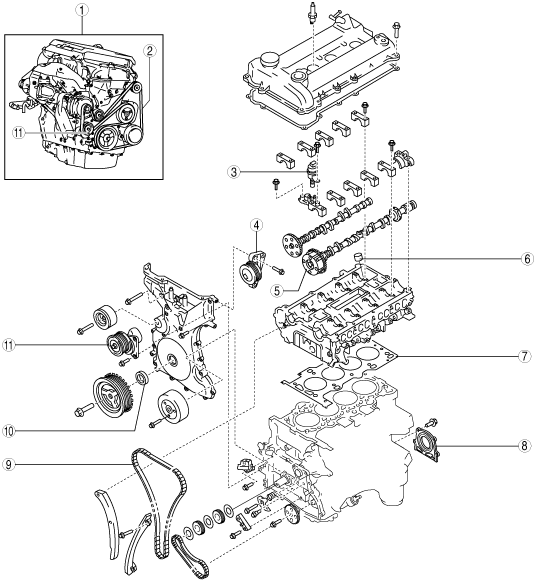

am3zzw00008594

1	Engine (See ENGINE TUNE-UP [L3 Turbo].) (See COMPRESSION INSPECTION [L3 Turbo].) (See ENGINE REMOVAL/INSTALLATION [L3 Turbo].) (See ENGINE DISASSEMBLY/ASSEMBLY [L3 Turbo].)
2	Drive belt (See DRIVE BELT INSPECTION [L3 Turbo].) (See DRIVE BELT REMOVAL/INSTALLATION [L3 Turbo].)
3	OCV (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [L3 Turbo].) (See OIL CONTROL VALVE (OCV) INSPECTION [L3 Turbo].)
4	Drive belt idler pulley (See ENGINE DISASSEMBLY/ASSEMBLY [L3 Turbo].)
5	Variable valve timing actuator (See VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [L3 Turbo].) (See VARIABLE VALVE TIMING ACTUATOR INSPECTION [L3 Turbo].)
6	Tappet (See VALVE CLEARANCE INSPECTION [L3 Turbo].) (See VALVE CLEARANCE ADJUSTMENT [L3 Turbo].)
7	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [L3 Turbo].)
8	Rear oil seal (See REAR OIL SEAL REPLACEMENT [L3 Turbo].)
9	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [L3 Turbo].)
10	Front oil seal (See FRONT OIL SEAL REPLACEMENT [L3 Turbo].)
11	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [L3 Turbo].) (See ENGINE DISASSEMBLY/ASSEMBLY [L3 Turbo].)
