FUEL SYSTEM LOCATION INDEX [ZY, Z6]

id0114b0800100

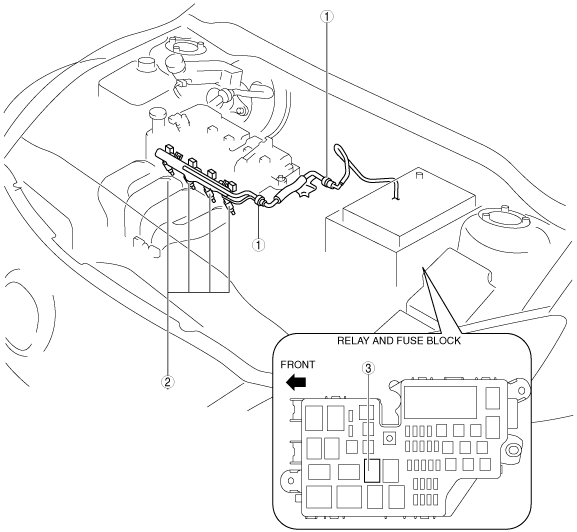

Engine Compartment Side

am3zzw00005124

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [ZY, Z6].)
2	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [ZY, Z6].) (See FUEL INJECTOR INSPECTION [ZY, Z6].)
3	Fuel pump relay (See RELAY INSPECTION.)

Fuel Tank Side

Fuel filter (high-pressure) is a built-in type in fuel pump unit

am3zzw00005125

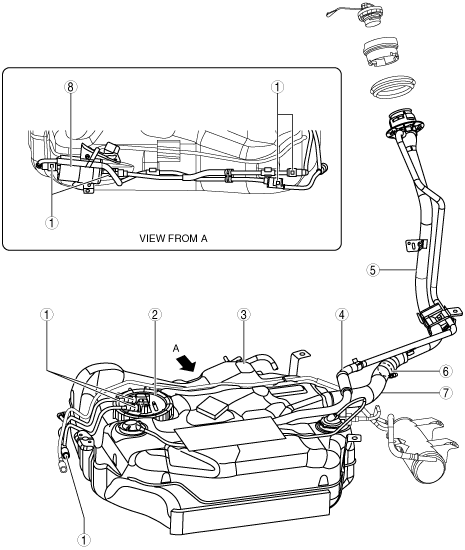

Fuel filter (high-pressure) is not a built-in type in fuel pump unit.

am3zzw00007765

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [ZY, Z6].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [ZY, Z6].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [ZY, Z6].) (See FUEL PUMP UNIT INSPECTION [ZY, Z6].)
3	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [ZY, Z6].) (See FUEL TANK INSPECTION [ZY, Z6].)
4	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [ZY, Z6].)
5	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [ZY, Z6].)
6	Nonreturn valve (See FUEL TANK REMOVAL/INSTALLATION [ZY, Z6].) (See NONRETURN VALVE INSPECTION [ZY, Z6].)
7	Joint hose (See FUEL TANK REMOVAL/INSTALLATION [ZY, Z6].)
8	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [ZY, Z6].)
