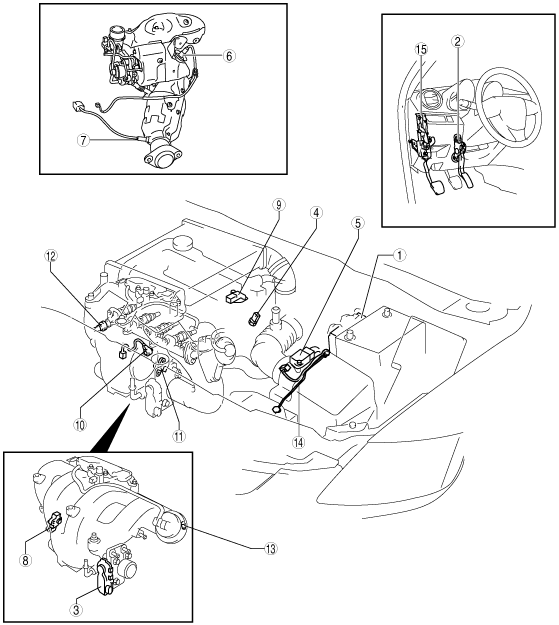

CONTROL SYSTEM COMPONENT LOCATION INDEX [L3 Turbo]

id0140b6800200

am3zzw00008776

1	PCM (BARO sensor) (SeePCM REMOVAL/INSTALLATION [L3 Turbo].) (SeePCM INSPECTION [L3 Turbo].) (SeePCM CONFIGURATION [L3 Turbo].) (SeeBAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [L3 Turbo].)
2	APP sensor (SeeACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [L3 Turbo].)
3	TP sensor (SeeTHROTTLE POSITION (TP) SENSOR INSPECTION [L3 Turbo].)
4	ECT sensor (SeeENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [L3 Turbo].) (SeeENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [L3 Turbo].)
5	MAF/IAT sensor (SeeMASS AIR FLOW (MAF) SENSOR INSPECTION [L3 Turbo].) (SeeINTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [L3 Turbo].)
6	A/F sensor (SeeAIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [L3 Turbo].) (SeeAIR FUEL RATIO (A/F) SENSOR INSPECTION [L3 Turbo].)
7	HO2S (SeeHEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [L3 Turbo].) (SeeHEATED OXYGEN SENSOR (HO2S) INSPECTION [L3 Turbo].)
8	MAP/boost air temperature sensor (SeeMANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [L3 Turbo].) (SeeMANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [L3 Turbo].) (SeeBOOST AIR TEMPERATURE SENSOR INSPECTION [L3 Turbo].)
9	CMP sensor (SeeCAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [L3 Turbo].) (SeeCAMSHAFT POSITION (CMP) SENSOR INSPECTION [L3 Turbo].)
10	KS (SeeKNOCK SENSOR (KS) REMOVAL/INSTALLATION [L3 Turbo].) (SeeKNOCK SENSOR (KS) INSPECTION [L3 Turbo].)
11	CKP sensor (SeeCRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [L3 Turbo].) (SeeCRANKSHAFT POSITION (CKP) SENSOR INSPECTION [L3 Turbo].)
12	Fuel pressure sensor (SeeFUEL PRESSURE SENSOR REMOVAL/INSTALLATION [L3 Turbo].) (SeeFUEL PRESSURE SENSOR INSPECTION [L3 Turbo].)
13	Variable swirl shutter valve switch (SeeVARIABLE SWIRL SHUTTER VALVE SWITCH INSPECTION [L3 Turbo].)
14	Neutral switch (SeeNEUTRAL SWITCH INSPECTION [L3 Turbo].)
15	CPP switch (SeeCLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [L3 Turbo].)
