HVAC BASIC SYSTEM LOCATION INDEX

id071100801700

L5

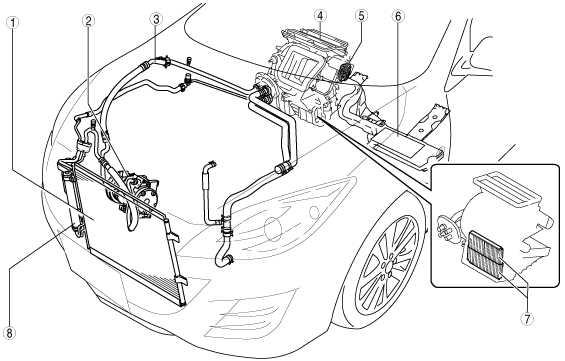

am3zzw00007354

LF, MZR 2.0 DISI i-stop

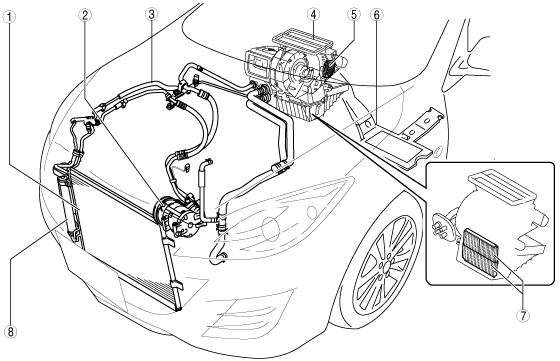

am3zzw00008215

Z6, ZY

am3zzw00008216

MZ-CD 1.6 (Y6)

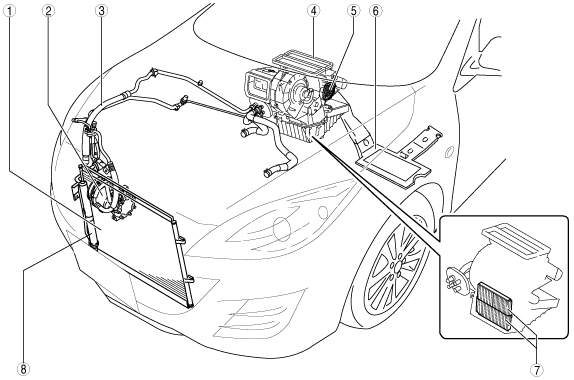

am3zzw00006717

MZR-CD 2.2

am3zzw00006718

L3 Turbo

am3zzw00008217

1	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)
2	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION.)
3	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION.)
4	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EXPANSION VALVE REMOVAL/INSTALLATION.) (See EVAPORATOR INSPECTION.) (See HEATER CORE INSPECTION.)
5	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
6	Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
7	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
8	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION.)
