PARKING BRAKE REMOVAL/INSTALLATION [INTEGRATED CABLE TYPE]

id0412008002d5

Note
•  The removal/installation procedure for the parking brake component part differs according to the part shipped from the factory. If the front parking brake cable and rear parking brake cable have been shipped from the factory as separate parts (split), perform the parking brake removal/installation procedure referring to the split cable type. (See PARKING BRAKE REMOVAL/INSTALLATION [CABLE SPLIT TYPE].)

1.  Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

2.  If the parking brake cable is to be removed, perform the following procedure:

1.  Remove the tunnel member. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZJ, ZY, Z6].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L3].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L3 Turbo].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
2.  Remove the installation nuts for the silencer, main silencer or the presilencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZJ, ZY, Z6].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L3].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L3 Turbo].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
3.  Disconnect the hanger rubber from the silencer, main silencer or presilencer, except for that installed to the vehicle front and rear ends, and suspend either the silencer, main silencer or presilencer using a rope.
aaxjjw00004100
4.  Remove the heat insulator.
5.  Move the rear heat insulator to a location that does not obstruct the servicing procedure.

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION.)

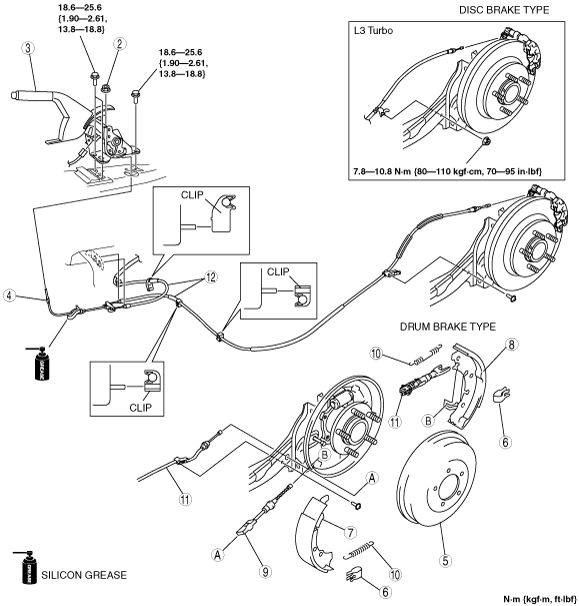

am3zzw00004843

1
Parking brake switch connector
2
Adjusting nut
3
Parking brake lever
5
Brake drum
6
Hold spring
7
Leading shoe
8
Trailing shoe
9
End cable
(See End Cable Removal Note.)
(See End Cable Installation Note.)
10
Shoe return spring
11
Adjuster
(See REAR BRAKE (DRUM) REMOVAL/INSTALLATION.)
12
Parking brake cable
(See Parking Brake Cable Installation Note.)


End Cable Removal Note

1.  Disconnect the rear parking brake cable indicated in the figure, remove the end cable.

am3zzw00003189


Parking Brake Cable Installation Note

1.  Install the rear parking brake cable to the parking brake brackets on the vehicle so that rear parking brake cable on the right side of the vehicle runs on top of the rear parking brake cable on the left side of the vehicle as shown in the figure.

am3zzw00004841

2.  Apply silicone grease to the grommet areas of the front parking brake cable before installing to the vehicle.

3.  Pass the rear parking brake cable through the inside of the vehicle from the rear ABS wheel speed sensor wiring harness (disc-brake type).

am3zzw00003190

4.  Install the rear parking brake cable clips to the vehicle being careful of the installation direction.


End Cable Installation Note

1.  Install the rear parking brake cable to the end cable.

2.  Make sure that the end cable tab is caught correctly.

am3zzw00003191
