HVAC BASIC SYSTEM LOCATION INDEX

id071100801700

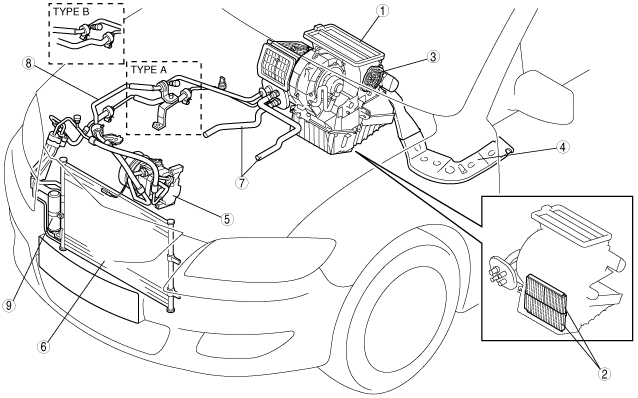

L.H.D. (Except MZR-CD (RF Turbo))

am3zzw00004417

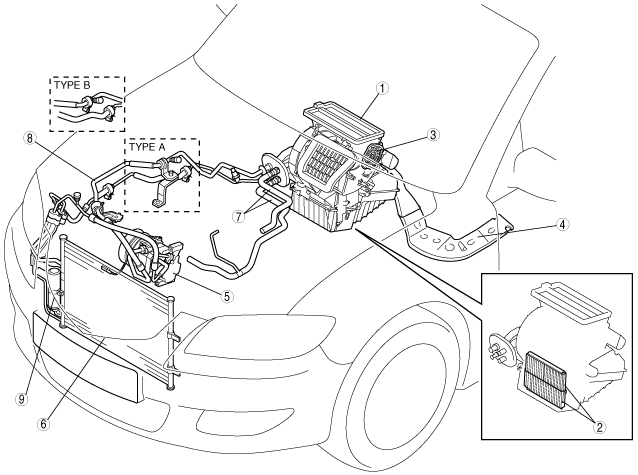

R.H.D. (Except MZR-CD (RF Turbo))

am3zzw00004418

L.H.D. (MZR-CD (RF Turbo))

am3zzw00004313

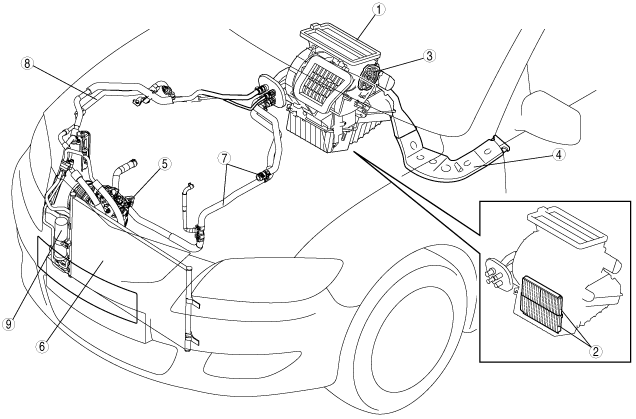

R.H.D. (MZR-CD (RF Turbo))

am3zzw00004318

1	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].) (See A/C UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].)
2	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
3	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
4	Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
5	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [ZJ, ZY, Z6].) (See A/C COMPRESSOR REMOVAL/INSTALLATION [LF, L3].) (See A/C COMPRESSOR REMOVAL/INSTALLATION [L3 Turbo].) (See A/C COMPRESSOR REMOVAL/INSTALLATION [MZR-CD (RF-Turbo)].)
6	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.) (See CONDENSER REMOVAL/INSTALLATION [MZR-CD (RF-Turbo)].)
7	Heater hose
8	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION [ZJ, ZY, Z6].) (See REFRIGERANT LINE REMOVAL/INSTALLATION [LF, L3].) (See REFRIGERANT LINE REMOVAL/INSTALLATION [L3 Turbo].) (See REFRIGERANT LINE REMOVAL/INSTALLATION [MZR-CD (RF-Turbo)].)
9	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION.)
