REAR DRAIN HOSE REMOVAL
id091500801500
1. Remove the following parts:
- (1) Console (4SD) (See CONSOLE REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (4) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (5) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (6) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (7) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (8) Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)
-
- (9) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
-
- (10) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (11) Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
-
- (12) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (13) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (14) Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
-
- (15) Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.)
-
- (16) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (17) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (18) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-

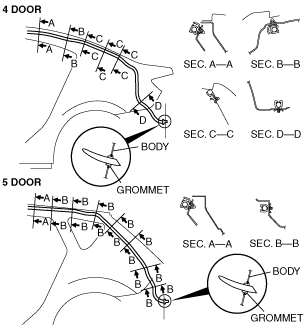

2. Remove the sunroof frame from the rear drain hose.
3. Remove the rear drain hose from the clips.
4. Pull the rear drain hose into the vehicle interior and remove the rear drain hose.
