EMISSION SYSTEM [SKYACTIV-D 1.5]


id0116q2110100


Outline

•  Diesel particulate elimination equipment (Diesel Particulate Filter) has been adopted which eliminates PM from the exhaust gas.
•  By recirculating the exhaust gas after it passes the catalytic converter, load on the turbocharger system is reduced and high environmental performance is achieved.

Structural View


Engine compartment side

am3zzn00005088

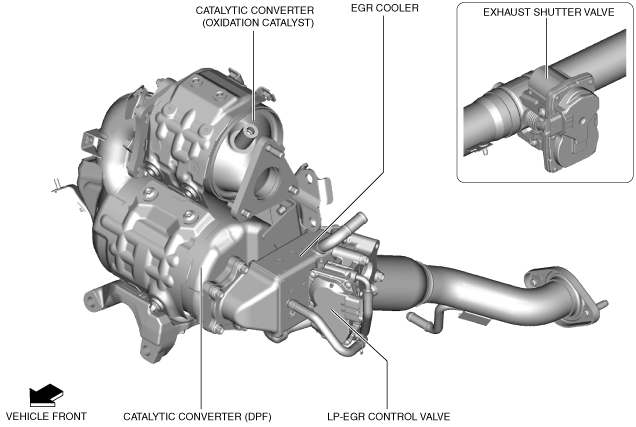

Exhaust system side

am3zzn00005089


Fuel tank side

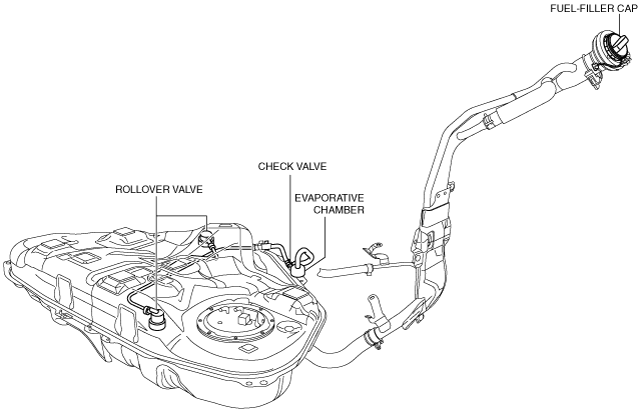

Fuel tank type A

am3zzn00005090

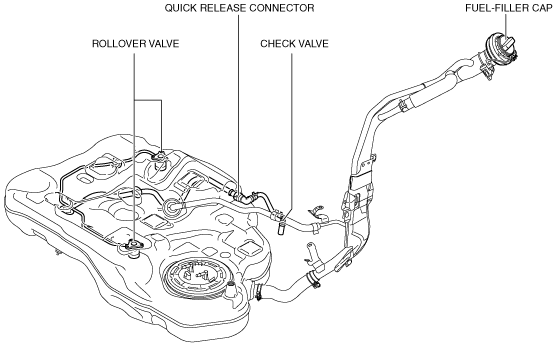

Fuel tank type B

am3zzn00005091

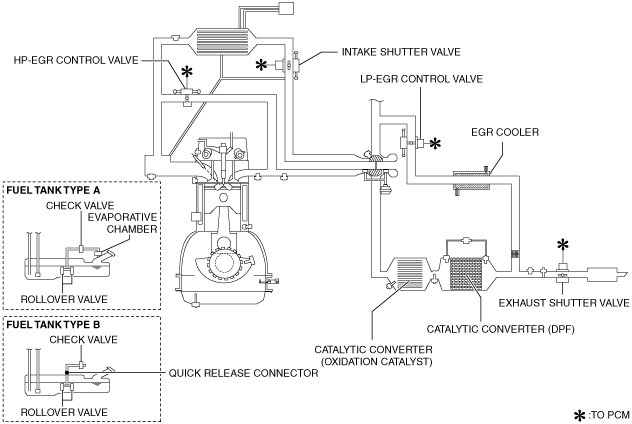

System Diagram

am3zzn00005092

Vacuum Hose Routing Diagram

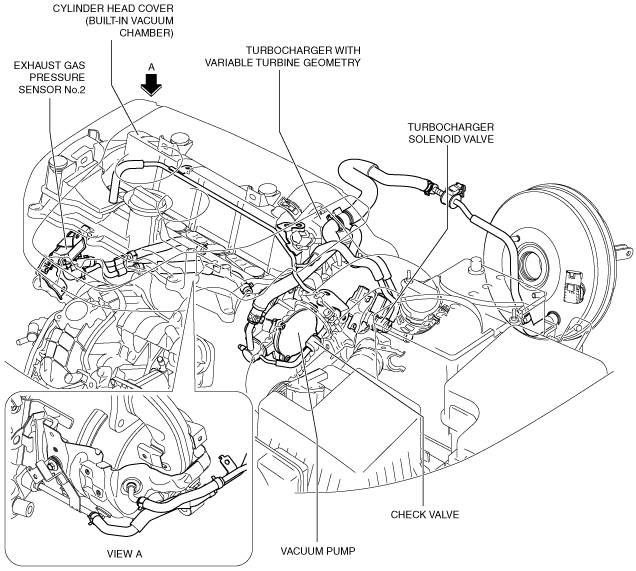

L.H.D.

am3zzn00005093

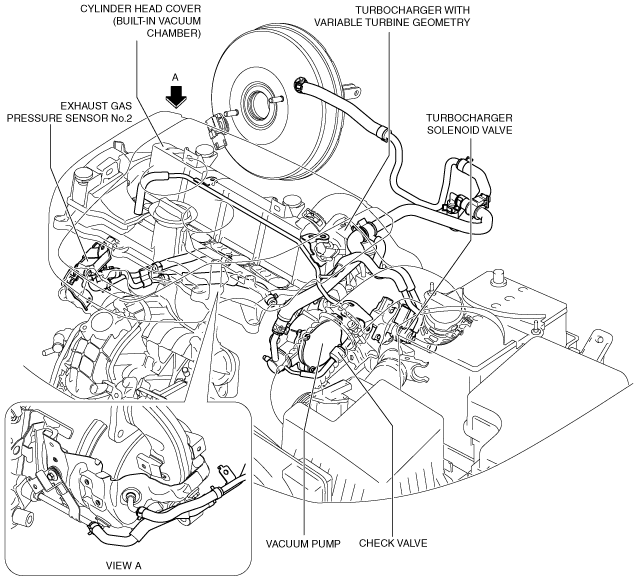

R.H.D.

am3zzn00005094

Structure

•  The emission system consists of the following parts:

Part/System name

Reference

Exhaust gas purification system
Catalytic converter
Exhaust gas recirculation system
Intake shutter valve
HP-EGR control valve
Exhaust shutter valve
LP-EGR control valve
EGR cooler
EGR pipe
Fuel-filler cap
Rollover valve
Check valve
Evaporative chamber
Diesel particulate filter
Quick release connector (emission system) (fuel tank type B only)
