BUMPER SLIDER REMOVAL/INSTALLATION

id091000822500

Front Bumper Slider

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

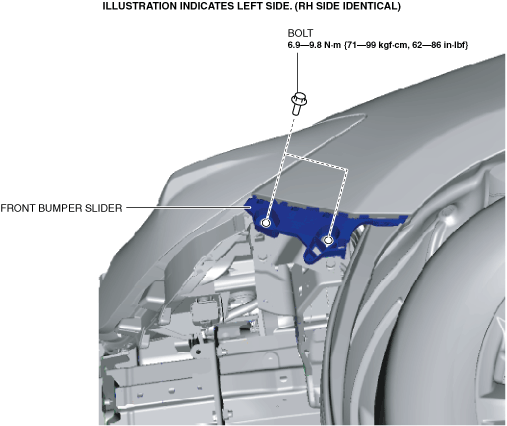

4.  Remove the bolts shown in the figure.

am3zzw00020562

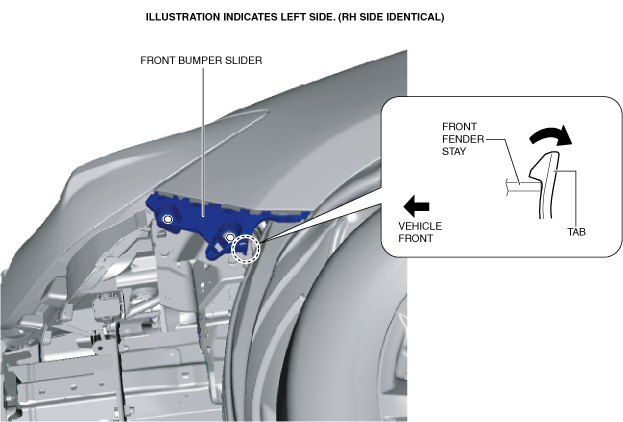

5.  Remove the tabs shown in the figure and detach the front fender panel from the front bumper slider.

am3zzw00020563

6.  Pull the front bumper slider in the direction of the arrow shown in the figure while detaching the pin.

am3zzw00020564

7.  Install in the reverse order of removal.

Rear Bumper Slider

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

(4)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

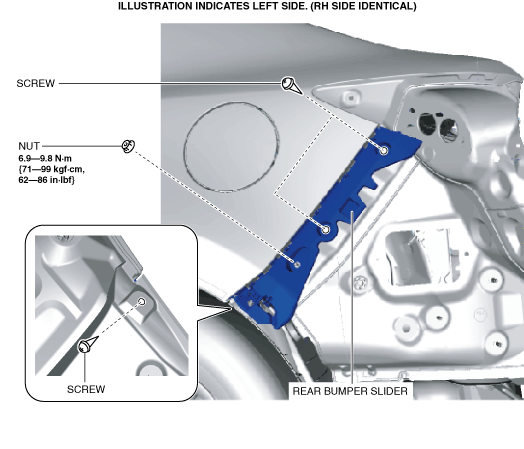

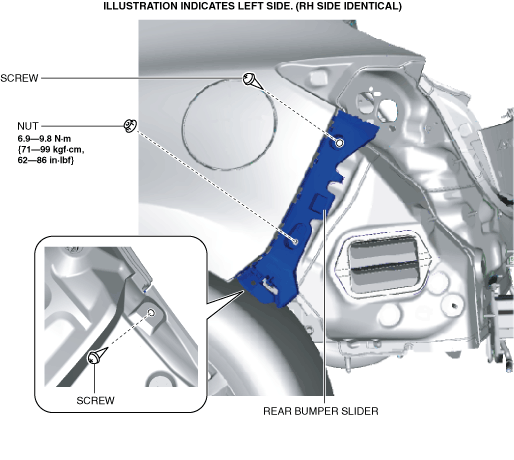

3.  Remove the screws and nut shown in the figure.

4SD

am3zzw00020565

5HB

am3zzw00020566

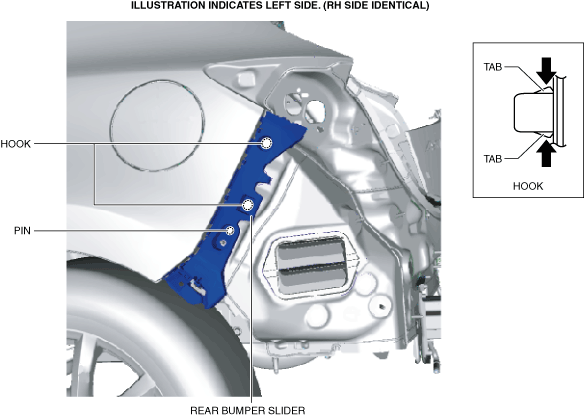

4.  Press the hook tabs shown in the figure and remove the rear bumper slider from the rear fender panel.

Caution

•  When removing, move the rear bumper slider straight out from the rear fender panel so as not to damage the rear bumper slider pin.

4SD

am3zzw00020567

5HB

am3zzw00020568

5.  Install in the reverse order of removal.
