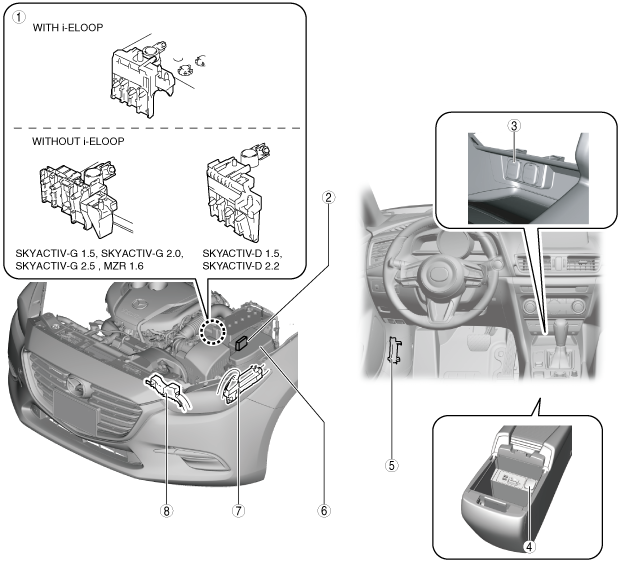

POWER SYSTEM LOCATION INDEX

id092100491000

am3zzw00018392

1	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION.)
2	Multiplex slow blow fuse (See MULTIPLEX SLOW BLOW FUSE REMOVAL/INSTALLATION.)
3	Front accessory socket (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION.) (See FRONT ACCESSORY SOCKET INSPECTION.)
4	Center accessory socket (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION.) (See CENTER ACCESSORY SOCKET INSPECTION.)
5	Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION.)
6	Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION.) (See FUSE SERVICE CAUTIONS.) (See RELAY LOCATION.) (See RELAY INSPECTION.)
7	Front wiring harness protector No.2 (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION.)
8	Front wiring harness protector No.1 (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION.)
