FRONT OIL SEAL REPLACEMENT [MZR 2.0, MZR 2.5]

id011006800800

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

4.  Disconnect the wiring harness.

5.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

6.  Remove the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

7.  Remove the ventilation hose.

8.  Remove the dipstick.

9.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

10.  Remove the front wheel and tire. (RH) (See GENERAL PROCEDURES (SUSPENSION).)

11.  Remove the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

12.  Remove the nut shown in the figure and set the power steering pipe component out of the way.

MZR 2.0

am3uuw00002794

MZR 2.5

am3uuw00002802

13.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

14.  Disconnect the drive shaft (RH) from joint shaft, set the drive shaft (RH) out of the way.(MTX) (See DRIVE SHAFT REMOVAL/INSTALLATION.)

15.  Remove in the order indicated in the table.

16.  Install in the reverse order of removal.

am3uuw00002401

1
Crankshaft pulley lock bolt
(See Crankshaft Pulley Lock Bolt Removal Note.)
(See Crankshaft Pulley Lock Bolt Installation Note.)
2
Crankshaft pulley
3
Front oil seal
(See Front Oil Seal Removal Note.)
(See Front Oil Seal Installation Note.)


Crankshaft Pulley Lock Bolt Removal Note

1.  Remove the cylinder block lower blind plug.

2.  Install the SST.

am3zzw00006864

3.  Turn the crankshaft clockwise until the crankshaft is in the No.1 cylinder top dead center (TDC) position (until the balance weight is attached to the SST).

4.  Hold the crankshaft pulley using the SSTs.

abatjw00001053


Front Oil Seal Removal Note

1.  Cut the oil seal lip using a utility knife.

2.  Remove the oil seal using a screwdriver wrapped with a rag.

am3uuw00002267


Front Oil Seal Installation Note

1.  Apply clean engine oil to the oil seal lip.

2.  Push the oil seal slightly in by hand.

3.  Tap the oil seal in evenly using the SST and a hammer.

am3uuw00002274
am3uuw00002268

Front oil seal press-in amount
0—0.5 mm {0—0.019 in}


Crankshaft Pulley Lock Bolt Installation Note

1.  Install the SST on the camshaft as shown in the figure.

Europe

am3zzw00006865

Except Europe

amxzzw00001457

2.  Verify that No.1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST.)

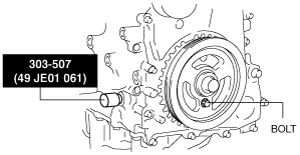

3.  To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 X 1.0), fix the crankshaft pulley to the engine front cover.

Note
•  Do not tighten the bolt during this step.
am3zzw00007142

4.  Hold the crankshaft pulley using the SSTs.

abatjw00001054

5.  Tighten the crankshaft pulley lock bolt in the order shown in the following two steps.

Tightening torque
Step 1: 96—104 N·m {9.8—10 kgf·m, 71—76 ft·lbf}
Step 2: 87—93°

6.  Remove the M6 x 1.0 bolt.

7.  Remove the SST from the camshaft.

8.  Remove the SST from the cylinder block lower blind plug hole.

9.  Verify that the teeth of the crankshaft pulley pulse wheel and the detection area of the crankshaft position sensor are installed to the correct positions. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

10.  Rotate the crankshaft clockwise 2 turns until the TDC position.

•  If not aligned, loosen the crankshaft pulley lock bolt and repeat from Step 1.

11.  Install the cylinder block lower blind plug.

am3uuw00002223

Tightening torque
18—22 N·m {1.9—2.2 kgf·m, 14—16 ft·lbf}
