VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5]

id011006801100

Note

•  Variable valve timing actuator can not be disassembled because it is a precision unit.

•  Intake camshaft sprocket is integrated with the variable valve timing actuator and cannot be disassembled.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

2.  Disconnect the negative battery cable.

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

4.  Disconnect the wiring harness.

5.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

6.  Remove the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

7.  Remove the ventilation hose.

8.  Remove the dipstick.

9.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

10.  Remove the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

11.  Remove the generator drive belt with the A/C drive belt still installed and set it out of the way. (MZR 2.0) (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

12.  Remove the drive belt. (MZR 2.5) (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

13.  Remove the engine front cover lower blind plug.

am3uuw00002169

14.  Remove the engine front cover upper blind plug.

am3zzw00012976

15.  Disconnect the drive shaft (RH) from joint shaft, set the drive shaft (RH) out of the way.(MTX) (See DRIVE SHAFT REMOVAL/INSTALLATION.)

16.  Remove the cylinder block lower blind plug, and install the SST.

am3zzw00006870

17.  Rotate the crankshaft in the direction of the engine rotation so that the No.1 piston is at top dead center (TDC) of the compression stroke. (Until the counterweight contacts SST and stops.)

18.  Loosen the timing chain using the following procedure.

(1)  Insert a suitable bolt (M6 X 1.0, length 25—35 mm {1.0—1.3 in}) into the engine front cover upper service hole and tighten it until it contacts the chain tensioner arm, and then rotate it back one turn. (Set the bolt slightly away from the chain tensioner arm so that it does not contact it.)

am3uuw00002172

(2)  Using the cast hexagon on the exhaust camshaft, apply force counterclockwise to facilitate unlocking the chain tensioner ratchet.

am3zzw00012977

(3)  Using a Hex bit socket (2.5 mm {0.098 in}) or T15 Torx bit socket, unlock the chain tensioner ratchet so that it can be lifted up.

am3uuw00002173

(4)  Using the cast hexagon on the exhaust camshaft, apply force in the direction of the engine rotation to increase tension on the chain.

am3zzw00012978

Note

•  The chain tensioner rack is compressed using the chain tension generated by applying force to the exhaust camshaft in the direction of the engine rotation.

am3uuw00002174

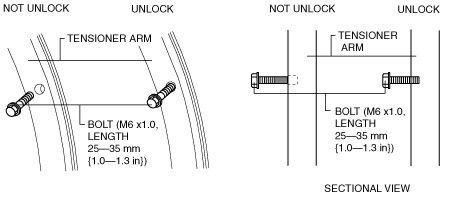

(5)  Screw in the bolt set in Step 1 approx. 5 mm {0.2 in} and secure the tensioner arm with the rack compressed.

Note

•  The racket has not been unlocked if the bolt cannot be pressed in approx. 5 mm {0.2 in}.

am3uuw00003037

•  If the tensioner arm cannot be secured, return the bolt to its original position and repeat the procedure from Step 3.

19.  Fix the exhaust camshaft using a wrench on the cast hexagon, and loosen the camshaft sprocket bolt.

am3zzw00008782

20.  Remove the exhaust camshaft sprocket bolt, exhaust camshaft sprocket, and washer (The washers may not be installed.) as a single unit.

Caution

•  Perform the work carefully so that the washer does not drop out. (The washers may not be installed.)

Note

•  The washers do not have to be installed on the MZR 2.0 (ATX) (there is no problem with installing them).

•  Be careful not to install a washer on only the IN or EX side.

am5ezw00006811

21.  Remove the OCV. (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

22.  Loosen the camshaft cap bolts in two or three steps in the order shown in the figure and remove the camshaft cap.

Note

•  The camshaft caps are to be kept ordered for correct reassembly in their original positions. Do not mix the caps.

am3zzw00012979

23.  Remove the variable valve timing actuator and the camshaft on the intake air side as a single unit.

24.  Remove the variable valve timing actuator.

(1)  Mark the camshaft and variable valve timing actuator as shown in the figure to make sure they are installed in their original position.

am3zzw00012980

(2)  Secure the camshaft in a vise.

am3zzw00012981

(3)  Loosen the variable valve timing actuator tightening bolt.

25.  Install a new washer. (Except MZR 2.0 (ATX).)

Note

•  The washers do not have to be installed on the MZR 2.0 (ATX) (there is no problem with installing them).

•  Be careful not to install a washer on only the IN or EX side.

―  If the washers are not installed, do not install the washers to both the IN and EX sides.

―  If the washers are to be installed, install them on both the IN and EX sides.

am3zzw00011674

26.  Install the variable valve timing actuator.

Note

•  When the variable valve timing actuator is replaced with a new one, mark it in the same location as the old one.

(1)  Secure the camshaft in a vise.

(2)  Align the marks of the camshaft and variable valve timing actuator.

(3)  Tighten variable valve timing actuator tightening bolt.

Tightening torque

69—75 N·m {7.1—7.6 kgf·m, 51—55 ft·lbf}

Note

•  If the alignment marks on the variable valve timing actuator are not available, refer to the “TIMING CHAIN ASSEMBLY” in the engine workshop manual and perform the sprocket position alignment again.

27.  Verify that No.1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST.)

28.  Apply the gear oil (SAE No.90 or equivalent) to each journal of the cylinder head as shown in the figure.

am3zzw00012982

29.  Install the camshaft with No.1 cylinder aligned with the TDC position.

30.  Apply the gear oil (SAE No.90 or equivalent) to each journal of the camshaft as shown in the figure.

am3zzw00012983

31.  Temporarily tighten the camshaft cap bolts evenly in 2—3 steps.

Note

•  Do not tighten the bolts during this step.

32.  Tighten the camshaft cap bolts in the order shown in the following two steps.

am3zzw00012984

33.  Install the OCV. (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

34.  Install the exhaust camshaft sprocket bolt, exhaust camshaft sprocket, and a new washer (Except MZR 2.0 (ATX).) as a single unit.

Caution

•  Install a washer to the fourth or fifth thread of the exhaust camshaft sprocket bolt being careful not to drop the washer. (Except MZR 2.0 (ATX).)

•  Do not tighten the camshaft sprocket bolt at this stage. Verify the valve timing before performing the bolt tightening.

Note

•  The washers do not have to be installed on the MZR 2.0 (ATX) (there is no problem with installing them).

•  Be careful not to install a washer on only the IN or EX side.

―  If the washers are not installed, do not install the washers to both the IN and EX sides.

―  If the washers are to be installed, install them on both the IN and EX sides.

am3zzw00011675

35.  Install the SST on the camshaft as shown in the figure.

Europe

am3zzw00006871

Except Europe

am3zzw00013004

36.  Remove the installation bolt for the engine front cover upper service hole (M6 X 1.0 length 25—35mm {1.0—1.3 in}), and apply tension to the timing chain.

37.  Rotate the crankshaft clockwise and verify that the No.1 cylinder is at TDC of the compression stroke. (The position counterweight contacts the SST.)

38.  Fix the exhaust camshaft using a wrench on the cast hexagon, and tighten the sprocket bolt.

azzjjn00000010

39.  Remove the SST from the camshaft.

40.  Remove the SST installed in the cylinder block lower blind plug hole.

41.  Rotate the crankshaft clockwise two turns and inspect the valve timing.

•  If not aligned, loosen the camshaft sprocket bolt and repeat the procedure from Step 31.

42.  Install the cylinder block lower blind plug.

am3uuw00002177

43.  Connect the drive shaft (RH) to joint shaft. (MTX) (See DRIVE SHAFT REMOVAL/INSTALLATION.)

44.  Apply the silicone sealant and install the engine front cover upper blind plug.

am3uuw00002170

Caution

•  Install the engine front cover upper blind plug before the applied silicone sealant starts to harden.

45.  Install a new engine front cover lower blind plug.

am3uuw00002169

46.  Connect the drive shaft (RH) to joint shaft.(MTX) (See DRIVE SHAFT REMOVAL/INSTALLATION.)

47.  Install the drive belt. (MZR 2.5) (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

48.  Install the generator drive belt. (MZR 2.0) (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

49.  Install the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

50.  Install the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

51.  Install the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

52.  Install the dipstick.

53.  Install the ventilation hose.

54.  Install the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

55.  Install the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

56.  Connect the wiring harness.

57.  Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

58.  Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

59.  Install the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
