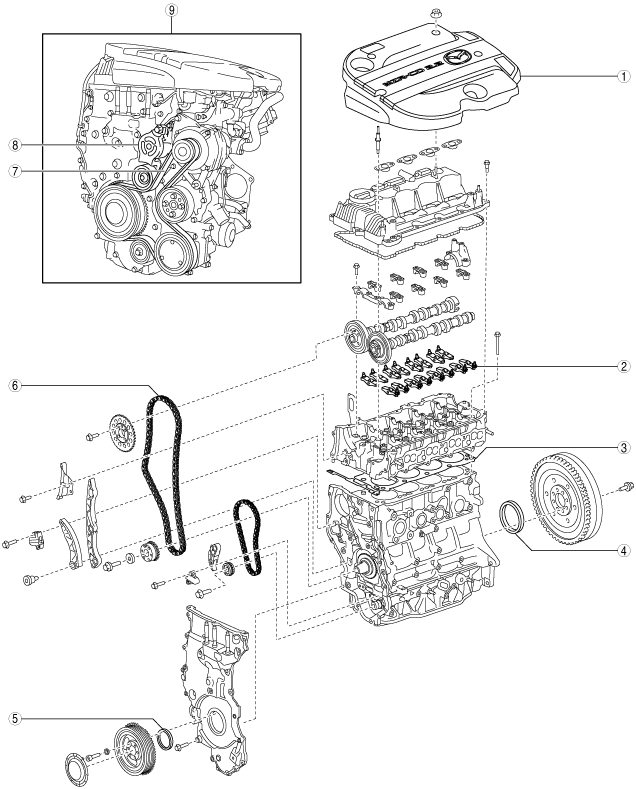

ENGINE LOCATION INDEX [MZR-CD 2.2]

id0110f2802100

am3zzw00010880

1	Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [MZR-CD 2.2].)
2	Rocker arm (See VALVE CLEARANCE INSPECTION [MZR-CD 2.2].) (See VALVE CLEARANCE ADJUSTMENT [MZR-CD 2.2].)
3	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [MZR-CD 2.2].)
4	Rear oil seal (See REAR OIL SEAL REPLACEMENT [MZR-CD 2.2].)
5	Front oil seal (See FRONT OIL SEAL REPLACEMENT [MZR-CD 2.2].)
6	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [MZR-CD 2.2].)
7	Drive belt (See DRIVE BELT INSPECTION [MZR-CD 2.2].) (See DRIVE BELT REMOVAL/INSTALLATION [MZR-CD 2.2].)
8	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [MZR-CD 2.2].)
9	Engine (See ENGINE TUNE-UP [MZR-CD 2.2].) (See COMPRESSION INSPECTION [MZR-CD 2.2].) (See ENGINE REMOVAL/INSTALLATION [MZR-CD 2.2].) (See ENGINE DISASSEMBLY/ASSEMBLY [MZR-CD 2.2].)
