ENGINE LOCATION INDEX [MZR 1.5, MZR 1.6]

id0110s1802100

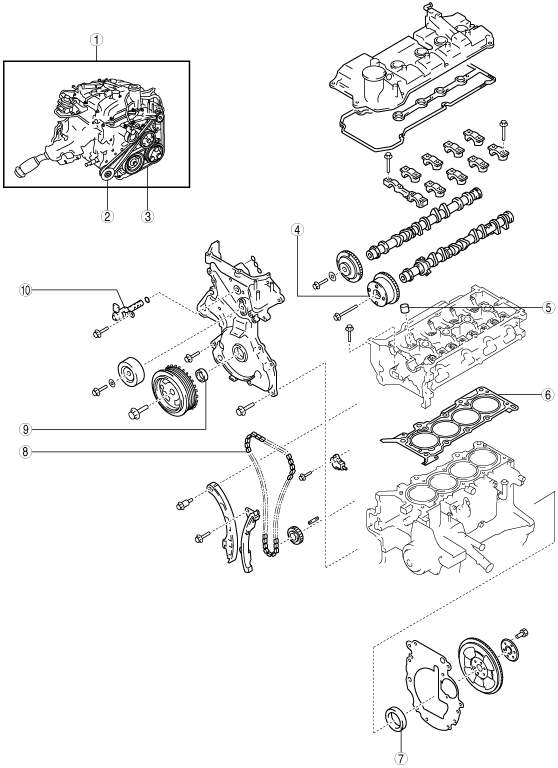

am3zzw00006279

1	Engine (See ENGINE TUNE-UP [MZR 1.5, MZR 1.6].) (See COMPRESSION INSPECTION [MZR 1.5, MZR 1.6].) (See ENGINE REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
2	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [MZR 1.5, MZR 1.6].) (See ENGINE DISASSEMBLY/ASSEMBLY [MZR 1.5, MZR 1.6].)
3	Drive belt (See DRIVE BELT INSPECTION [MZR 1.5, MZR 1.6].) (See DRIVE BELT REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
4	Variable valve timing actuator (See VARIABLE VALVE TIMING ACTUATOR INSPECTION [MZR 1.5, MZR 1.6].) (See VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
5	Tappet (See VALVE CLEARANCE INSPECTION [MZR 1.5, MZR 1.6].) (See VALVE CLEARANCE ADJUSTMENT [MZR 1.5, MZR 1.6].)
6	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [MZR 1.5, MZR 1.6].)
7	Rear oil seal (See REAR OIL SEAL REPLACEMENT [MZR 1.5, MZR 1.6].)
8	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
9	Front oil seal (See FRONT OIL SEAL REPLACEMENT [MZR 1.5, MZR 1.6].)
10	OCV (See OIL CONTROL VALVE (OCV) INSPECTION [MZR 1.5, MZR 1.6].) (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
