EMISSION SYSTEM LOCATION INDEX [SKYACTIV-G 2.0]

id0116z8803700

Engine Compartment Side

am3uuw00008523

1	Ventilation hose
2	Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CATCH TANK INSPECTION [SKYACTIV-G 2.0].)
3	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G 2.0].)
4	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-G 2.0].)

Exhaust System Side

am3uuw00008524

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

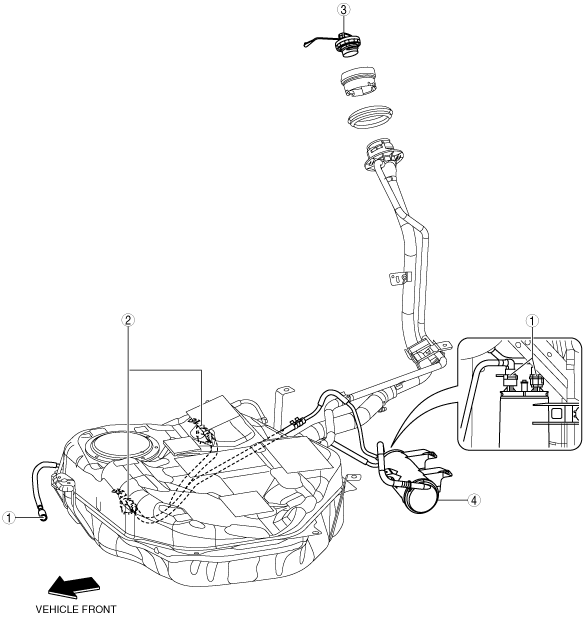

Fuel Tank Side

am3zzw00012171

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.0].) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CHECK VALVE (TWO-WAY) INSPECTION [SKYACTIV-G 2.0].)
3	Fuel-filler cap (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.0].)
