HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER]

id0740a2803600

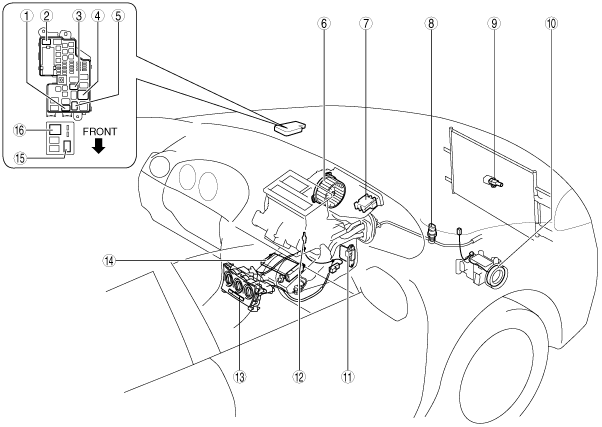

L.H.D.

am3zzw00011056

1
Rear window defroster relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
2
Heated windshield relay No.1 (vehicles with heated windshield) (MZ-CD 1.6)
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
3
Heated windshield relay No.2 (vehicles with heated windshield) (MZ-CD 1.6)
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
4
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
5
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
6
Blower motor
(See BLOWER MOTOR REMOVAL [MANUAL AIR CONDITIONER].)
(See BLOWER MOTOR INSTALLATION [MANUAL AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER].)
7
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)
8
Refrigerant pressure sensor (MZR 2.0, MZ-CD 1.6)
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
Refrigerant pressure switch (MZR 1.6)
(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
9
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
10
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER].)
11
Resistor
(See RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See RESISTOR INSPECTION [MANUAL AIR CONDITIONER].)
12
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
13
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].)
(See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
14
PTC heater (vehicles with PTC heater) (MZ-CD 1.6)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [MANUAL AIR CONDITIONER].)
15
Heated windshield relay No.1 (vehicles with heated windshield) (MZR 1.6)
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
16
Heated windshield relay No.2 (vehicles with heated windshield) (MZR 1.6)
(See RELAY LOCATION.)
(See RELAY INSPECTION.)

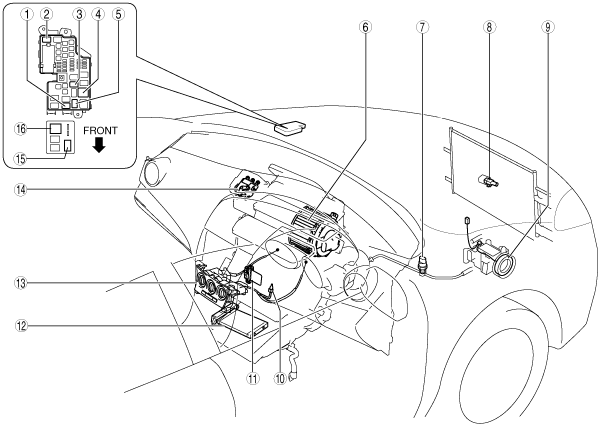

R.H.D.

am3zzw00011057

1
Rear window defroster relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
2
Heated windshield relay No.1 (vehicles with heated windshield) (MZ-CD 1.6)
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
3
Heated windshield relay No.2 (vehicles with heated windshield) (MZ-CD 1.6)
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
4
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
5
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
6
Blower motor
(See BLOWER MOTOR REMOVAL [MANUAL AIR CONDITIONER].)
(See BLOWER MOTOR INSTALLATION [MANUAL AIR CONDITIONER].)
(See BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER].)
7
Refrigerant pressure sensor (MZR 2.0, MZ-CD 1.6)
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
Refrigerant pressure switch (MZR 1.6, MZR-CD 2.2)
(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See REFRIGERANT PRESSURE SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
8
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
9
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].)
(See MAGNETIC CLUTCH ADJUSTMENT [MANUAL AIR CONDITIONER].)
(See MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER].)
10
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
11
Resistor
(See RESISTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See RESISTOR INSPECTION [MANUAL AIR CONDITIONER].)
12
PTC heater (vehicles with PTC heater) (MZ-CD 1.6)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [MANUAL AIR CONDITIONER].)
13
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].)
(See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER].)
14
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
(See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)
15
Heated windshield relay No.1 (vehicles with heated windshield) (MZR 1.6)
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
16
Heated windshield relay No.2 (vehicles with heated windshield) (MZR 1.6)
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
