FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER]
id0740a2801300
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Remove the following parts:
- (1) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (2) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (3) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
- (4) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (5) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (6) Console (See CONSOLE REMOVAL/INSTALLATION.)
- (7) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (8) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (9) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (10) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (11) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (12) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (13) Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
- (14) Center lower panel (Vehicles without audio unit) (See CENTER LOWER PANEL REMOVAL/INSTALLATION.)
- (15) Audio unit (Vehicles with audio unit) (See AUDIO UNIT REMOVAL/INSTALLATION.)
3. Remove the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

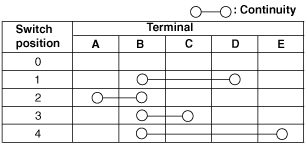

4. Verify that the continuity between the fan switch terminals as indicated in the table.
-
• If there is any malfunction, replace the fan switch.
