DTC: B116A:12, 26:Er82 [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]
id0902g8440100
|
DESCRIPTION |
Microphone circuit malfunction |
|---|---|
|
DETECTION CONDITION
|
Short to power supply in the microphone input circuit
|
|
POSSIBLE CAUSE
|
• Connector or terminal malfunction

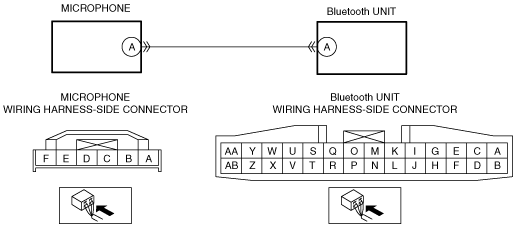

• Short to power supply in wiring harness between the following terminals:
• Microphone malfunction
• Bluetooth unit malfunction
|
 |
|
Diagnostic Procedure
|
Step |
Inspection |
Action |
|
|---|---|---|---|
|
1
|
INSPECT MICROPHONE CONNECTOR CONDITION
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Disconnect the microphone connector.
• Inspect the connector for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminal, then go to Step 4.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT Bluetooth UNIT CONNECTOR CONDITION
• Disconnect the Bluetooth unit connector.
• Inspect the connector for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminal, then go to Step 4.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT MICROPHONE INPUT CIRCUIT FOR SHORT TO POWER SUPPLY
• Make sure reconnect the disconnected connectors.
• Reconnect the negative battery cable.
• Switch the ignition to ON.
• Measure the voltage at the following terminals (wiring harness-side):
• Is there any voltage?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
4
|
VERIFY TROUBLESHOOTING COMPLETED
• Clear the DTC from the Bluetooth unit memory.
• Perform the Bluetooth unit DTC inspection.
• Is the same DTC present?
|
Yes
|
Replace the microphone, then go to the next step.
|
|
No
|
Go to the Step 6.
|
||
|
5
|
VERIFY TROUBLESHOOTING COMPLETED
• Reconnect the negative battery cable.
• Clear the DTC from the Bluetooth unit memory.
• Perform the Bluetooth unit DTC inspection.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the Bluetooth unit.
Go to the next step.
|
|
No
|
Go to the next step.
|
||
|
6
|
VERIFY THAT NO OTHER DTCs ARE RECORDED
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
||
