DTC TABLE [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

id0902g9960500

Note

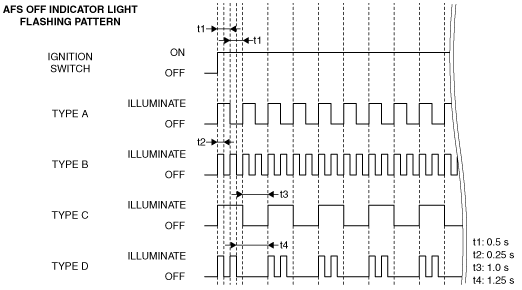

•  If there is a malfunction in the system, the AFS control module flashes the AFS OFF indicator light.
am3zzw00010901

—: Not applicable

DTC

AFS OFF indicator light

Description

Page

AFS OFF indicator light flashing pattern

M-MDS display
6
B1041:54
Flash
(Type B)
Headlight auto leveling system initialization error
(See DTC 6/DTC B1041:54 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
3
B1044:01
Flash
(Type A)
Auto leveling sensor circuit malfunction
(See DTC 3/DTC B1044:01 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
B10A3:86
Flash
(Type A)
Swivel actuator (LH) signal malfunction
(See DTC B10A3:86 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
B10A3:87
Flash
(Type A)
Communication error to swivel actuator (LH)
(See DTC B10A3:87 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
B10A4:86
Flash
(Type A)
Swivel actuator (RH) signal malfunction
(See DTC B10A4:86 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
B10A4:87
Flash
(Type A)
Communication error to swivel actuator (RH)
(See DTC B10A4:87 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
C1B00:54
Flash
(Type C)
Communication error to steering angle sensor
(See DTC C1B00:54 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U0001:88
Flash
(Type A)
CAN system communication error
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop))].)
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (MZR-CD 2.2, MZR 2.0 DISI i-stop))].)
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (MZR 1.5))].)
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (MZR-CD 2.2, MZR 2.0 DISI i-stop))].)
(See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop, MZR 1.5))].)
—
U0100:00
Flash
(Type A)
Communication error to PCM
—
U0140:00
Flash
(Type A)
Communication error to BCM
—
U0401:00
Flash
(Type A)
Error signal from PCM
(See DTC U0401:00 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U0422:00
Flash
(Type A)
Error signal from BCM
(See DTC U0422:00 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U2100:00
Flash
(Type D)
AFS control module configuration error
(See DTC U2100:00 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U3000:49
Flash
(Type A)
AFS control module internal malfunction
(See DTC U3000:49 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U3003:16
—
Low power supply circuit voltage
(See DTC U3003:16 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
—
U3003:17
—
High power supply circuit voltage
(See DTC U3003:17 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)].)
