BONNET ADJUSTMENT

id091000407300


Gap Adjustment

1.  Verify that the gap between the bonnet and the body is within the specification.

am3zzw00011660

Standard clearance
a: -2.8—0.8 mm {-0.11—0.03 in}
b: –1.2—1.2 mm {–0.047—0.0.47 in}

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)
(2)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
(3)  Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION.)
(4)  Side step molding (See SIDE STEP MOLDING REMOVAL.)
(5)  Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

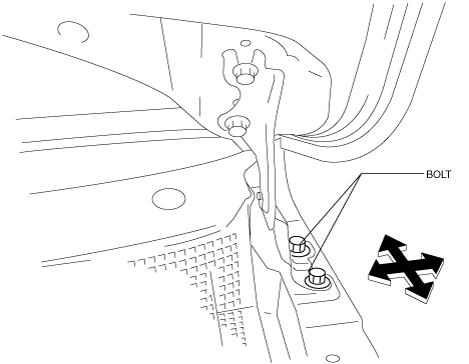

4.  Loosen the bonnet hinge installation bolts and adjust the bonnet.

am3uuw00003609

5.  Tighten the bolts. (See BONNET REMOVAL/INSTALLATION.)

6.  Install the following parts:

(1)  Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)
(2)  Side step molding (See SIDE STEP MOLDING REMOVAL.)
(3)  Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION.)
(4)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
(5)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

7.  Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)


Height Difference Adjustment

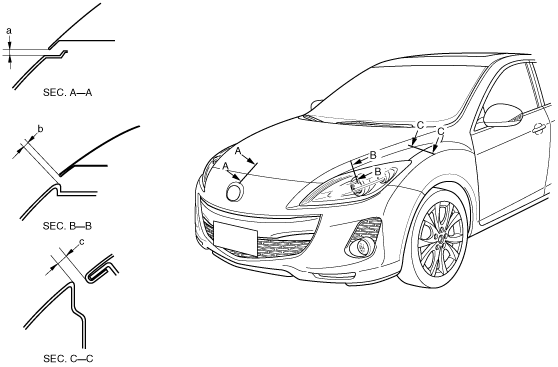

1.  Verify that the height difference between the bonnet and the body is within the specification.

am3zzw00011661

Standard clearance
a: 3.0—6.0 mm {0.12—0.23 in}
b: 1.9—5.1 mm {0.08—0.20 in}
c: 2.5—4.9 mm {0.10—0.19 in}

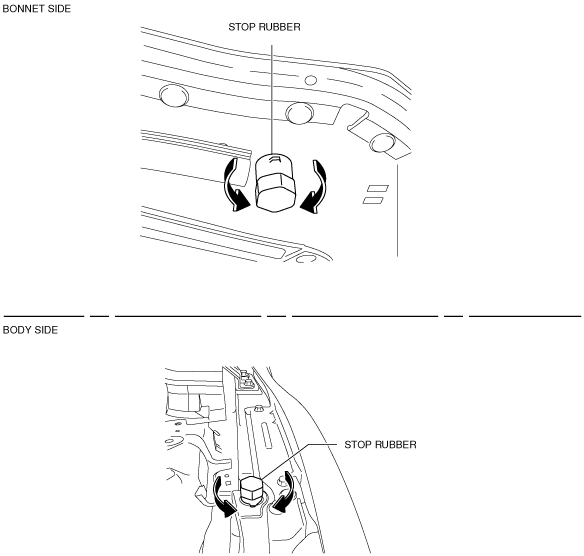

2.  Turn the stop rubber to adjust the height of the bonnet.

am3zzw00006100
