REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION

id091200800300

1.  Fully lower the rear door glass.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

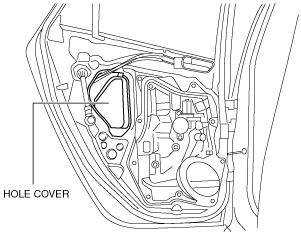

4.  Remove the service hole cover.

am3uuw00002891

5.  Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

6.  Remove the glass guide. (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

7.  Remove the rear power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

8.  Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

9.  Remove the nuts.

am3uuw00005134

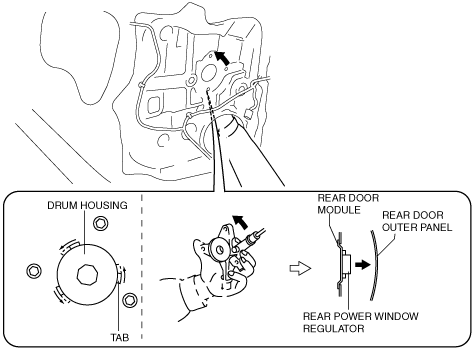

10.  Insert a hand through the speaker installation hole, rotate the drum housing in the direction shown in the figure to detach the tabs from the rear door module.

am3uuw00005135

11.  Remove the rear power window regulator through the speaker installation hole.

am3uuw00002941

12.  Install in the reverse order of removal.

Caution

•   Make sure the cable does not unspool from the drum housing when installing.
