FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

id091400510900

1.  To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.

am3uuw00003159

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(5)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

4.  Remove the service hole cover.

am3uuw00002968

5.  Remove the nut.

am3zzw00005156

6.  Remove the fastener. (Vehicles with fastener)

am3zzw00011863

7.  Remove the tab, then remove the door lock-link bracket (Driver’s door).

am3zzw00005158

8.  Remove the service hole cover.

am3uuw00002970

9.  Remove the screw from the service hole.

Note

•  The screw cannot be removed because of the stopper.

am3uuw00002971

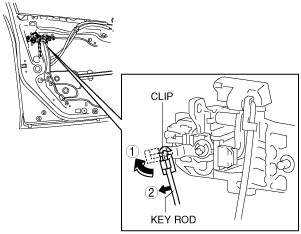

10.  Lift the clip in the direction of the arrow (1), and pull out the key rod in the direction of the arrow (2).

am3uuw00002972

11.  Press the tab on the front outer handle bracket in the direction of the arrow.

am3uuw00002973

12.  Maintaining the condition in Step 11, remove the front key cylinder.

am3uuw00002974

13.  Using a tape-wrapped fastener remover, press up the collar cap in the direction of the arrow shown in the arrow, press aside the front door key cylinder tabs (1), and remove the collar cover from the front door key cylinder.

am3uuw00004661

14.  Install in the reverse order of removal.
