ENGINE DISASSEMBLY/ASSEMBLY [MZR 1.8, MZR 2.0, MZR 2.5]

id011005800500

1.  Remove the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION.)

2.  Remove the engine from the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FS5A-EL] (ATX).) (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [G35M-R] (5MTX).) (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [G66M-R] (6MTX).)

3.  Remove the generator. (See GENERATOR REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

4.  Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

5.  Remove the EGR valve. (See EGR VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

6.  Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

7.  Remove the fuel injectors. (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

8.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

9.  Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

10.  Remove in the order indicated in the table.

11.  Assemble in the reverse order of disassembly.

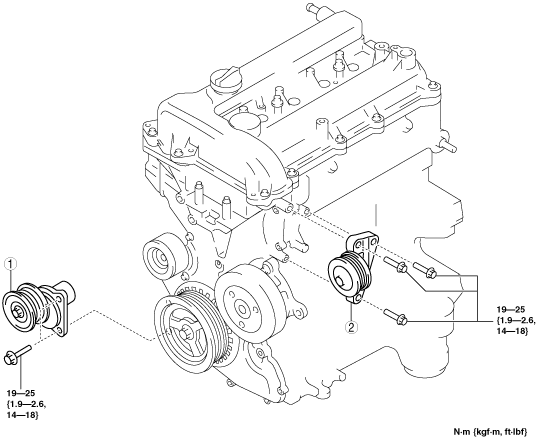

am6zzw00001771

1	Drive belt auto tensioner
2	Drive belt idler pulley
