PARKING BRAKE LEVER REMOVAL/INSTALLATION

id041200196600

1.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

(4)  Decoration panel (SeeDECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Console (See REAR CONSOLE REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, inspect the parking brake stroke and adjust if necessary. (See PARKING BRAKE LEVER INSPECTION.)

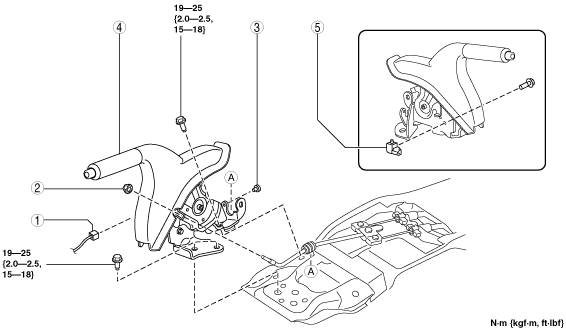

L.H.D.

am6zzw00004999

1	Parking brake switch connector
2	Adjusting nut
3	Clip
4	Parking brake lever
5	Parking brake switch

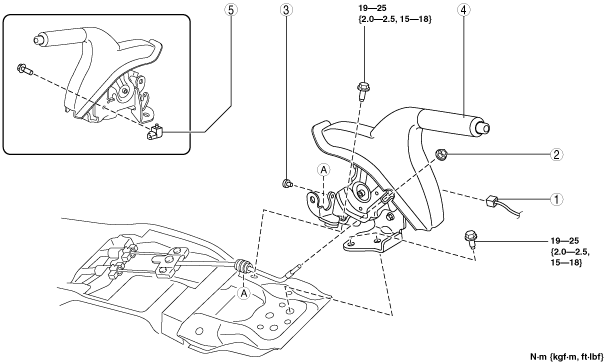

R.H.D.

am6zzw00005000

1	Parking brake switch connector
2	Adjusting nut
3	Clip
4	Parking brake lever
5	Parking brake switch
